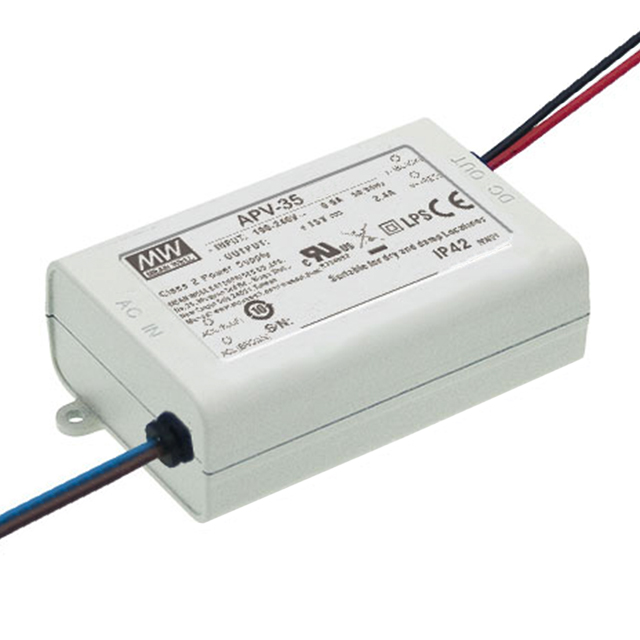

APV-35 Series

Catalog

LED DRIVER CV AC/DC 5V 5A

Part	Mounting Type	Termination Style	Features	Topology	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Current - Output (Max)	Voltage - Input (Min) [Min]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Number of Outputs	Power (Watts)	Efficiency	Voltage - Output	Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]
MEAN WELL USA Inc. APV-35-5	Chassis Mount	Wire Leads	OCP OVP SCP	AC DC Converter	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	IP42	5 A	90 VAC	3000 V	-30 ░C	70 °C	CE cURus	1	25 W	76.5 %	5 V	Constant Voltage	264 VAC
MEAN WELL USA Inc. APV-35-15	Chassis Mount	Wire Leads	OCP OVP SCP	AC DC Converter	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	IP42		90 VAC	3000 V	-30 ░C	70 °C	CE cURus	1	36 W	84 %	15 V	Constant Voltage	264 VAC	2.4 A
MEAN WELL USA Inc. APV-35-12	Chassis Mount	Wire Leads	OCP OVP SCP	AC DC Converter	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	IP42		90 VAC	3000 V	-30 ░C	70 °C	CE cURus	1	36 W	83 %	12 V	Constant Voltage	264 VAC	3 A
MEAN WELL USA Inc. APV-35-36	Chassis Mount	Wire Leads	OCP OVP SCP	AC DC Converter	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	IP42		90 VAC	3000 V	-30 ░C	70 °C	CE cURus	1	36 W	85 %	36 V	Constant Voltage	264 VAC	1 A
MEAN WELL USA Inc. APV-35-24	Chassis Mount	Wire Leads	OCP OVP SCP	AC DC Converter	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	IP42		90 VAC	3000 V	-30 ░C	70 °C	CE cURus	1	36 W	84 %	24 V	Constant Voltage	264 VAC	1.5 A
