696420 Series

Catalog

CONN RING CIRC 24-26AWG #6 CRIMP

Part	Material - Insulation	Termination	Insulation	Features	Stud/Tab Size	Color	Contact Material	Length - Overall [x]	Length - Overall [x]	Terminal Type	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness	Thickness	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall	Length - Overall

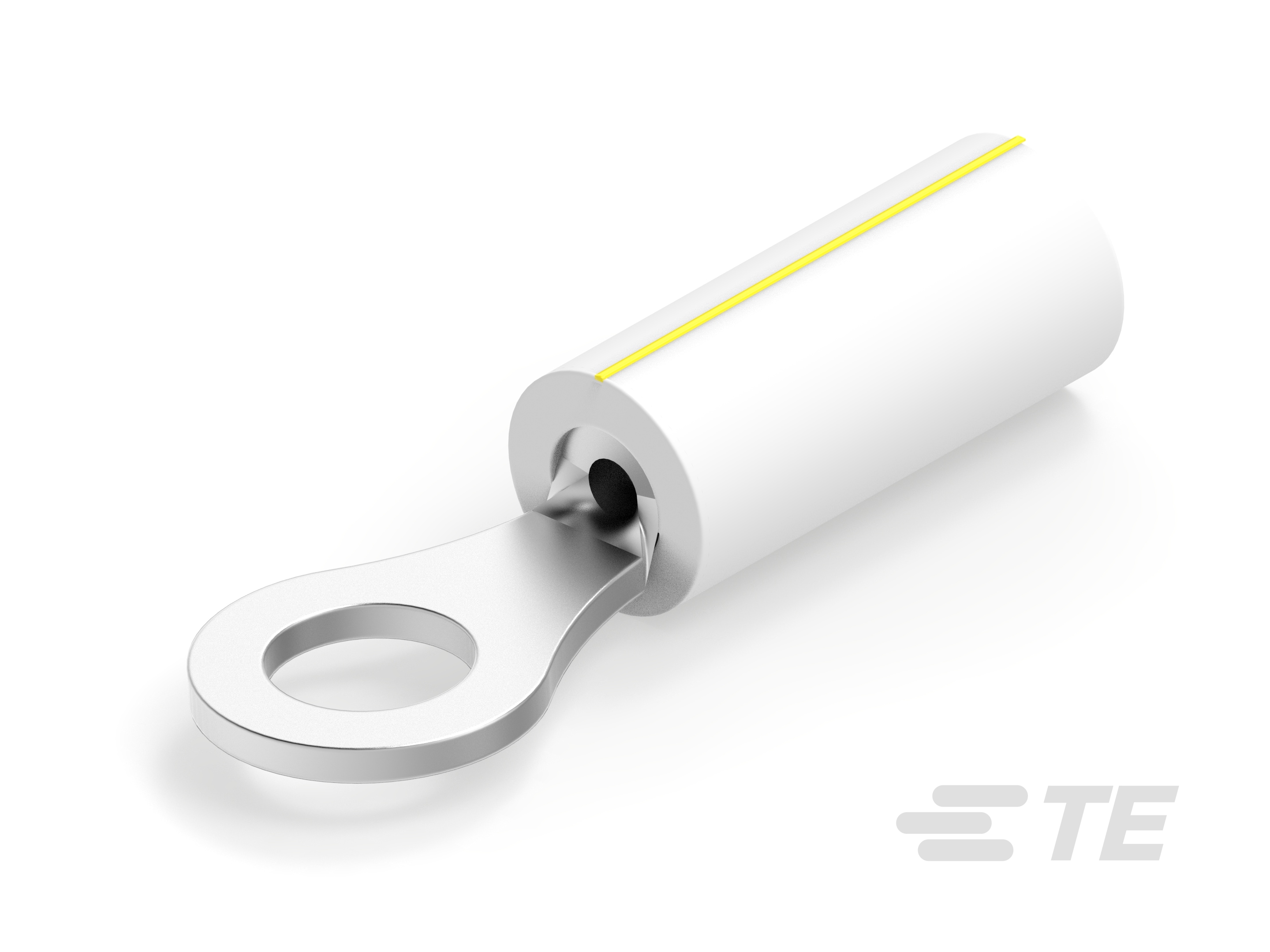

TE Connectivity AMP Connectors 696420-3	Polyvinylidene Fluoride (PVDF)	Crimp	Insulated	Radiation Resistant Serrated Termination	6 Stud	Natural	Copper	20.24 mm	0.797 in	Circular	Tin	6.35 mm	0.25 "	0.027 in	0.69 mm	Free Hanging (In-Line)	24 AWG	26 AWG
TE Connectivity AMP Connectors 696420-5	Polyvinylidene Fluoride (PVDF)	Crimp	Insulated	Radiation Resistant Serrated Termination	8 Stud	Natural	Copper			Circular	Tin	7.14 mm	0.281 in	0.027 in	0.69 mm	Free Hanging (In-Line)	24 AWG	26 AWG	20.8 mm	0.819 "

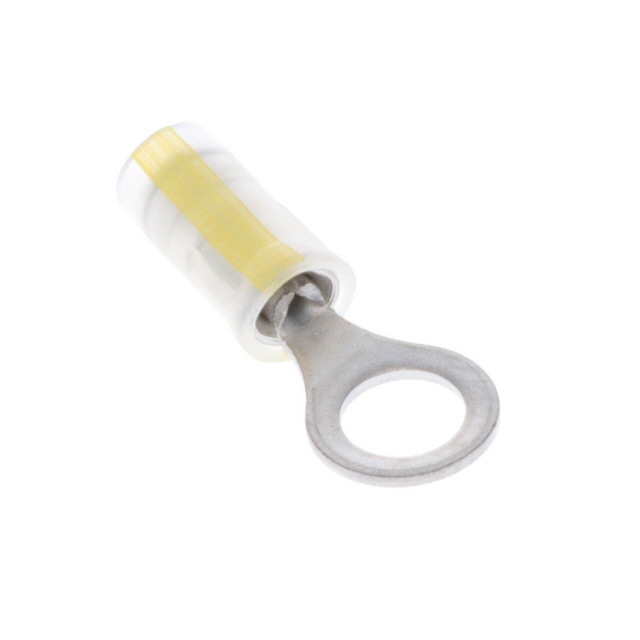

TE Connectivity AMP Connectors 696420-6	Polyvinylidene Fluoride (PVDF)	Crimp	Insulated	Radiation Resistant Serrated Termination	10 Stud	Natural	Copper	22 mm	0.866 in	Circular	Tin	7.92 mm	0.312 in	0.027 in	0.69 mm	Free Hanging (In-Line)	24 AWG	26 AWG
