NRPN022 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD 4POS 2MM
| Part | Contact Finish Thickness - Post | Contact Finish - Post | Insulation Color | Voltage Rating | Connector Type | Fastening Type | Insulation Material | Number of Positions | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Termination | Number of Positions Loaded | Contact Material | Number of Rows [custom] | Insulation Height | Insulation Height | Mounting Type | Contact Shape | Material Flammability Rating | Shrouding | Contact Finish - Mating | Features | Pitch - Mating | Pitch - Mating | Style | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Current Rating (Amps) | Contact Length - Post [custom] | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

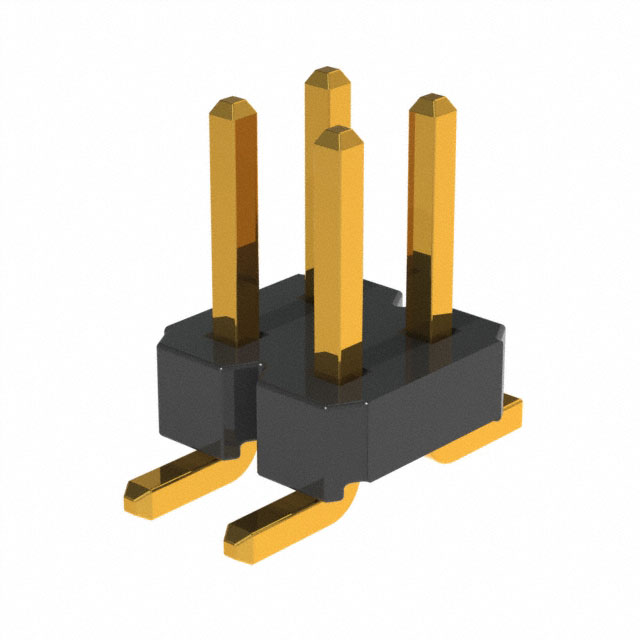

 Sullins Connector Solutions | Flash | Gold | Black | 150 VDC | Header | Push-Pull | Nylon 6T Polyamide (PA6T) | 4 | Flash | 2 mm | 0.079 in | Solder | All | Brass | 2 | 0.059 in | 1.5 mm | Surface Mount | Square | UL94 V-0 | Unshrouded | Gold | Pick and Place | 0.079 " | 2 mm | Board to Board Cable | 0.141 in | 3.6 mm | -40 C | 105 ░C | Male Pin | 2 A | ||||||
 Sullins Connector Solutions | Flash | Gold | Black | 150 VDC | Header | Push-Pull | Nylon 6T Polyamide (PA6T) | 4 | Flash | 2 mm | 0.079 in | Solder | All | Brass | 2 | 0.059 in | 1.5 mm | Surface Mount | Square | UL94 V-0 | Unshrouded | Gold | 0.079 " | 2 mm | Board to Board Cable | 0.141 in | 3.6 mm | -40 C | 105 ░C | Male Pin | 2 A | |||||||

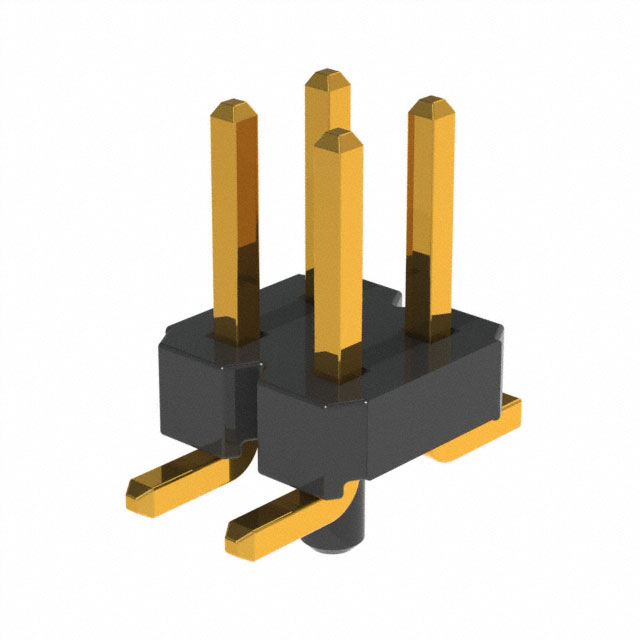

 Sullins Connector Solutions | Flash | Gold | 150 VDC | Header | Push-Pull | Nylon 6T Polyamide (PA6T) | 4 | Flash | 2 mm | 0.079 in | Solder | All | Brass | 2 | 0.059 in | 1.5 mm | Surface Mount | Square | UL94 V-0 | Unshrouded | Gold | Board Guide | 0.079 " | 2 mm | Board to Board Cable | 0.141 in | 3.6 mm | -40 C | 105 ░C | Male Pin | 2 A | |||||||

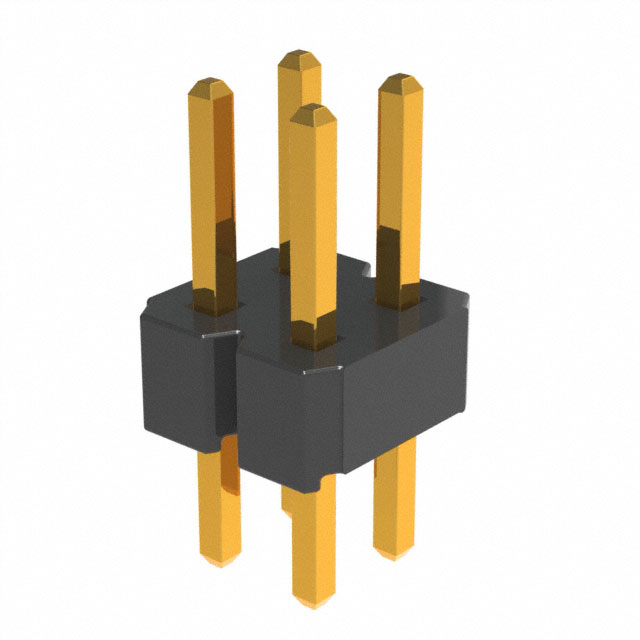

 Sullins Connector Solutions | Flash | Gold | Black | 150 VDC | Header | Push-Pull | Nylon 6T Polyamide (PA6T) | 4 | Flash | 2 mm | 0.079 in | Solder | All | Brass | 2 | Through Hole | Square | UL94 V-0 | Unshrouded | Gold | 0.079 " | 2 mm | Board to Board Cable | 0.141 in | 3.6 mm | -40 C | 105 ░C | Male Pin | 2 A | 0.11 in | 2.79 mm | 2 mm | 0.079 in | 0.33 in | 8.38 mm |
