68657 Series

Catalog

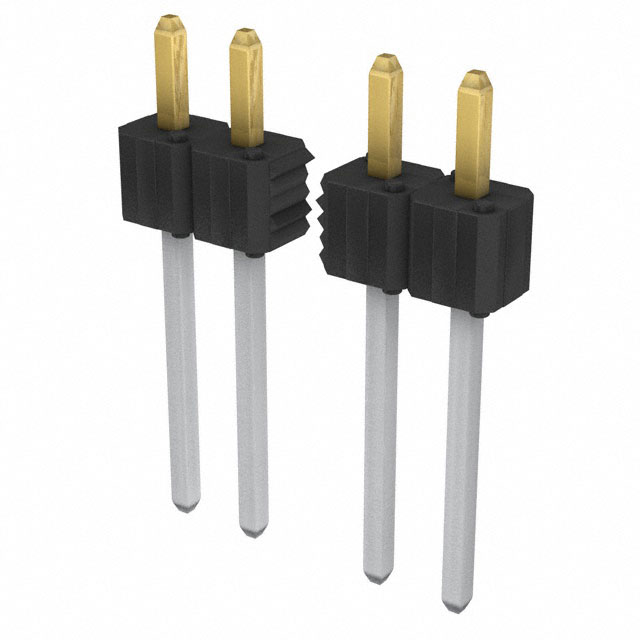

BERGSTIK II 100CC SR ST-STRAIGHT

Part	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Connector Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Rows	Contact Material	Number of Positions	Voltage Rating	Insulation Color	Contact Shape	Mounting Type	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Termination	Shrouding	Contact Type	Contact Finish - Post
Amphenol ICC (FCI) 68657-118HLF	0.1 in	2.54 mm	0.1 in	2.54 mm	Header	5 A	0.368 in	9.35 mm	Push-Pull	3.05 mm	0.12 in	30 Áin	0.76 Ám	Gold or Gold GXT™	1	Phosphor Bronze	18	110 VDC	Black	Square	Through Hole	All	0.588 "	14.94 mm	UL94 V-0	Solder	Unshrouded	Male Pin
Amphenol ICC (FCI) 68657-125HLF	0.1 in	2.54 mm	0.1 in	2.54 mm	Header	5 A	0.368 in	9.35 mm	Push-Pull	3.05 mm	0.12 in	30 Áin	0.76 Ám	Gold or Gold GXT™	1	Phosphor Bronze		110 VDC	Black	Square	Through Hole	All	0.588 "	14.94 mm	UL94 V-0	Solder	Unshrouded	Male Pin
Amphenol ICC (FCI) 68657-432HLF	0.1 in	2.54 mm	0.1 in	2.54 mm	Header	5 A	0.368 in	9.35 mm	Push-Pull	3.05 mm	0.12 in	100 çin	2.54 çm		1	Phosphor Bronze		110 VDC	Black	Square	Through Hole	All	0.588 "	14.94 mm	UL94 V-0	Solder	Unshrouded	Male Pin	Tin
Amphenol ICC (FCI) 68657-336HLF	0.1 in	2.54 mm	0.1 in	2.54 mm	Header	5 A	0.368 in	9.35 mm	Push-Pull	3.05 mm	0.12 in	50 µin	1.27 µm	Gold or Gold GXT™	1	Phosphor Bronze	36	110 VDC	Black	Square	Through Hole	All	0.588 "	14.94 mm	UL94 V-0	Solder	Unshrouded	Male Pin
Amphenol ICC (FCI) 68657-409HLF	0.1 in	2.54 mm	0.1 in	2.54 mm	Header	5 A	0.368 in	9.35 mm	Push-Pull	3.05 mm	0.12 in	100 çin	2.54 çm		1	Phosphor Bronze	9	110 VDC	Black	Square	Through Hole	All	0.588 "	14.94 mm	UL94 V-0	Solder	Unshrouded	Male Pin	Tin
Amphenol ICC (FCI) 68657-113HLF	0.1 in	2.54 mm	0.1 in	2.54 mm	Header	5 A	0.368 in	9.35 mm	Push-Pull	3.05 mm	0.12 in	30 Áin	0.76 Ám	Gold or Gold GXT™	1	Phosphor Bronze	13	110 VDC	Black	Square	Through Hole	All	0.588 "	14.94 mm	UL94 V-0	Solder	Unshrouded	Male Pin
Amphenol ICC (FCI) 68657-430HLF	0.1 in	2.54 mm	0.1 in	2.54 mm	Header	5 A	0.368 in	9.35 mm	Push-Pull	3.05 mm	0.12 in	100 çin	2.54 çm		1	Phosphor Bronze	30	110 VDC	Black	Square	Through Hole	All	0.588 "	14.94 mm	UL94 V-0	Solder	Unshrouded	Male Pin	Tin
Amphenol ICC (FCI) 68657-431HLF	0.1 in	2.54 mm	0.1 in	2.54 mm	Header	5 A	0.368 in	9.35 mm	Push-Pull	3.05 mm	0.12 in	100 çin	2.54 çm		1	Phosphor Bronze	31	110 VDC	Black	Square	Through Hole	All	0.588 "	14.94 mm	UL94 V-0	Solder	Unshrouded	Male Pin	Tin

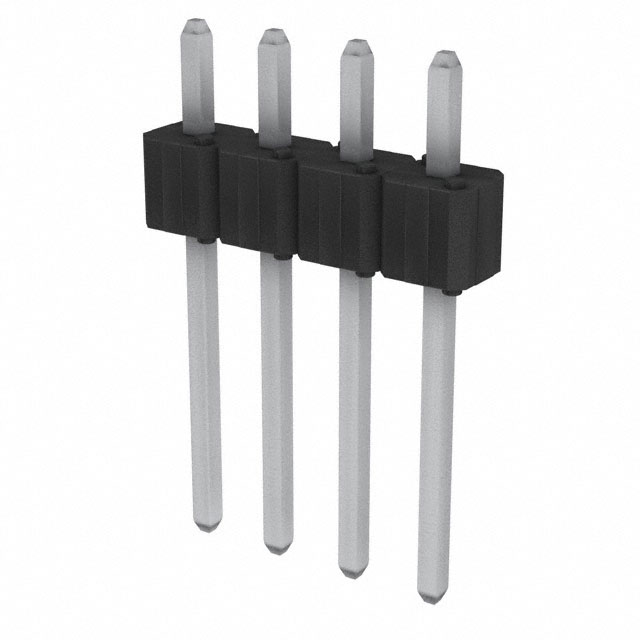

Amphenol ICC (FCI) 68657-404HLF	0.1 in	2.54 mm	0.1 in	2.54 mm	Header	5 A	0.368 in	9.35 mm	Push-Pull	3.05 mm	0.12 in	100 çin	2.54 çm		1	Phosphor Bronze	4	110 VDC	Black	Square	Through Hole	All	0.588 "	14.94 mm	UL94 V-0	Solder	Unshrouded	Male Pin	Tin

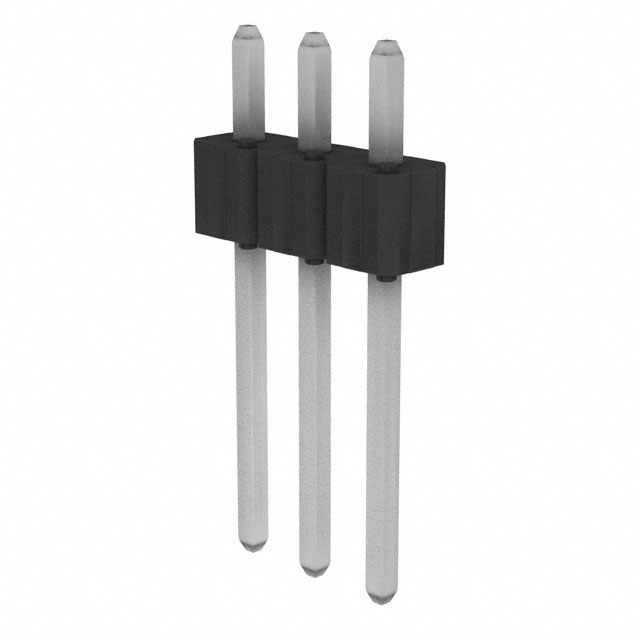

Amphenol ICC (FCI) 68657-403HLF	0.1 in	2.54 mm	0.1 in	2.54 mm	Header	5 A	0.368 in	9.35 mm	Push-Pull	3.05 mm	0.12 in	100 çin	2.54 çm		1	Phosphor Bronze		110 VDC	Black	Square	Through Hole	All	0.588 "	14.94 mm	UL94 V-0	Solder	Unshrouded	Male Pin	Tin
