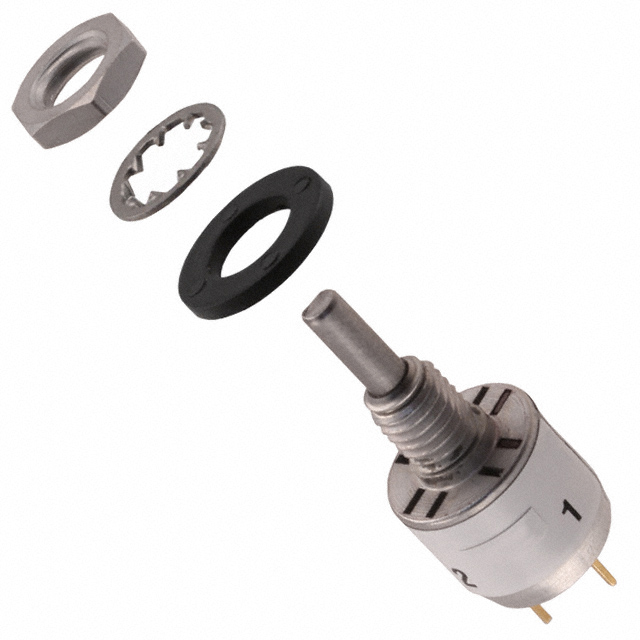

50DP90 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
ROTARY SWITCH, 2 POSITION, 2 POLE, 90 °, 150 MA, 220 V, 50 SERIES
| Part | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Index Stops | Contact Finish | Circuit per Deck | Number of Poles per Deck | Actuator Type | Termination Style | Number of Decks [custom] | Angle of Throw | Depth Behind Panel [custom] | Mounting Type | Number of Positions | Actuator Length [x] | Current Rating (Amps) | Contact Timing | Voltage Rating - AC | Number of Positions [Min] | Number of Positions [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 6.45 mm | 28 V | Adjustable | Gold | DPDT | 2 | Flatted (3.17mm Dia) | PC Pin | 1 | 90 ° | 13.64 mm | Panel Mount Through Hole | 2 | 9.53 mm | 150 mA 200 mA | Non-Shorting (BBM) | 115 V | ||
 Grayhill Inc. | 6.45 mm | 28 V | Adjustable | Gold | SP4T | 1 | Flatted (3.17mm Dia) | PC Pin | 1 | 90 ° | 13.64 mm | Panel Mount Through Hole | 9.53 mm | 150 mA 200 mA | Non-Shorting (BBM) | 115 V | 2 | 4 |
