34109 Series

Catalog

CONN RING CIRC 16-22AWG #10

Part	Mounting Type	Insulation	Contact Material	Terminal Type	Length - Overall [x]	Length - Overall	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Termination	Features

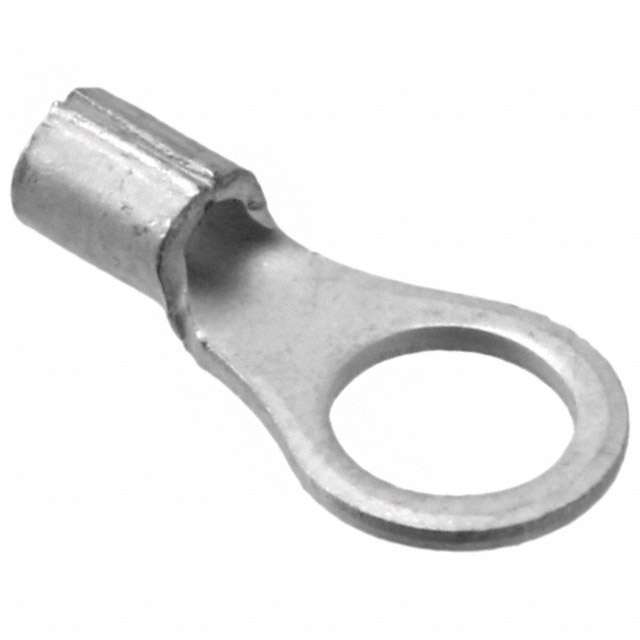

TE Connectivity Raychem Cable Protection 2-34109-2	Free Hanging (In-Line)	Non-Insulated	Copper	Circular	0.574 in	14.58 mm	10 Stud	22 AWG	16 AWG	0.031 in	0.79 mm	7.14 mm	0.281 in	Tin	Crimp	Brazed Seam Serrated Termination

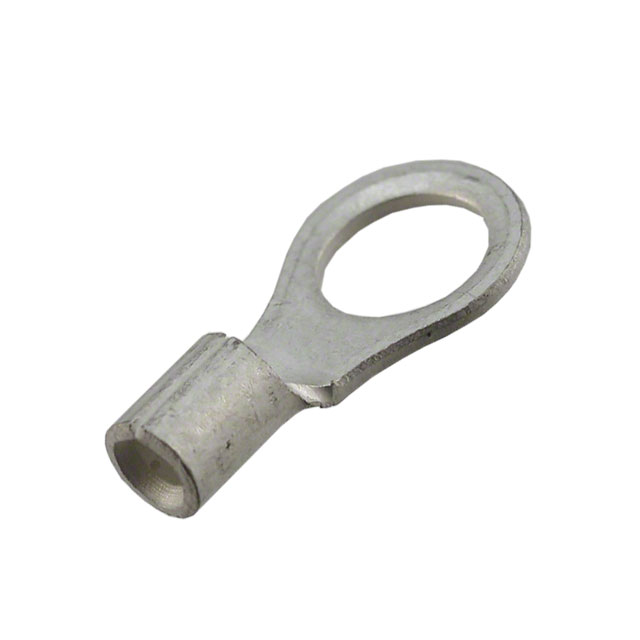

TE Connectivity Raychem Cable Protection 8-34109-1	Free Hanging (In-Line)	Non-Insulated	Copper	Circular	0.574 in	14.58 mm	10 Stud	22 AWG	16 AWG	0.031 in	0.79 mm	7.14 mm	0.281 in	Tin	Crimp	Brazed Seam Serrated Termination
