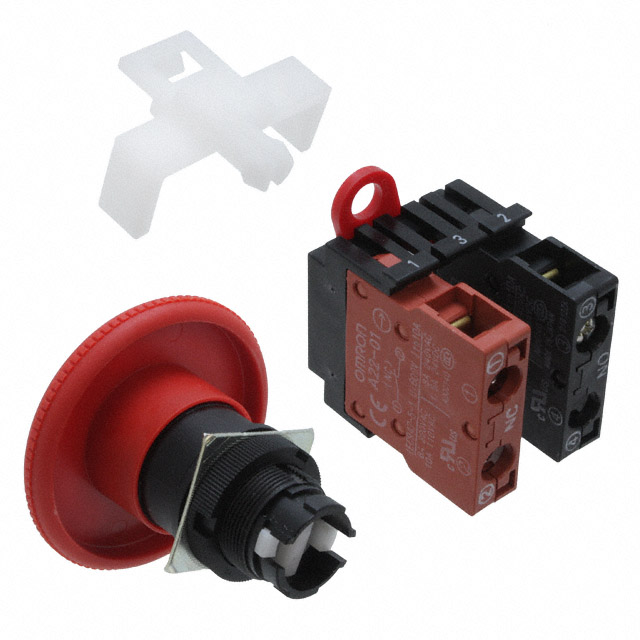

A22E Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SW E-STOP TWIST RESET 100MA 30V
| Part | Includes | Ingress Protection | Voltage Rating - DC | Switch Function | Panel Cutout Dimensions [diameter] | Reset Operation | Current Rating (Amps) | Circuit | Termination Style | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Illumination Voltage (Nominal) | Voltage Rating - AC | Features | Actuator Marking | Type | Requires | Illumination | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 1 Locking Ring 1 Nut 1 Switch | IP65 | 30 V | On-Off | 22.3 mm | Twist | 100 mA | SPST-NC | Screw Terminal | Panel Mount Front | -20 ░C | 70 °C | ||||||||
 Omron Automation and Safety | 1 Locking Ring 1 Nut 1 Switch | IP65 - Dust Tight Water Resistant | 24 V | On-Off | 22.3 mm | Twist | 10 A | SPST-NC | Screw Terminal | Panel Mount Front | -20 ░C | 55 °C | 110 VAC | 110 V | Illuminated (Red) | |||||
 Omron Automation and Safety | No Marking | |||||||||||||||||||
 Omron Automation and Safety | 1 Locking Ring 1 Nut 1 Switch | IP65 | 24 V | On-Off | 22.3 mm | Twist | 10 A | SPST-NC | Screw Terminal | Panel Mount Front | -20 ░C | 70 °C | 110 V | |||||||
Omron Automation and Safety | 1 Locking Ring 1 Nut 1 Switch | IP65 | 24 V | Off-On On-Off | 22.3 mm | Pull | 10 A | 3PST-2NC/1NO | Screw Terminal | Chassis Mount | -20 ░C | 70 °C | 110 V | |||||||
 Omron Automation and Safety | 1 Locking Ring 1 Nut 1 Switch | IP65 - Dust Tight Water Resistant | 24 V | On-Off | 22.3 mm | Twist | 10 A | DPST-NC | Screw Terminal | Panel Mount Front | -20 ░C | 55 °C | 110 VAC | 110 V | Illuminated (Red) | |||||
 Omron Automation and Safety | 1 Locking Ring 1 Nut 1 Switch | IP65 | 24 V | On-Off | 22.3 mm | Pull | 10 A | DPST-NC | Screw Terminal | Panel Mount Front | -20 ░C | 70 °C | 110 V | |||||||
 Omron Automation and Safety | 1 Locking Ring 1 Nut 1 Switch | IP65 - Dust Tight Water Resistant | 24 V | On-Off | 22.3 mm | Twist | 10 A | DPST-NC | Screw Terminal | Chassis Mount | -20 ░C | 55 °C | 24 VAC/DC | 110 V | Illuminated (Red) | |||||
Omron Automation and Safety | 1 Locking Ring 1 Nut 1 Switch | IP65 | 24 V | On-Off | 22.3 mm | Twist | 10 A | DPST-NC | Screw Terminal | Panel Mount Front | -20 ░C | 70 °C | 110 V | EMS Marking | ||||||
 Omron Automation and Safety | 22.3 mm | Maintained | Contact Block(s) | Non-Illuminated | E-Stop Round |
