TPS25981 Series

2.7-V to 16-V, 10-A, 6-mΩ eFuse with transient overcurrent blanking timer

Catalog

2.7-V to 16-V, 10-A, 6-mΩ eFuse with transient overcurrent blanking timer

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Function	Accuracy	Voltage - Input [Max]	Voltage - Input [Min]	Sensing Method	Mounting Type	Current - Output

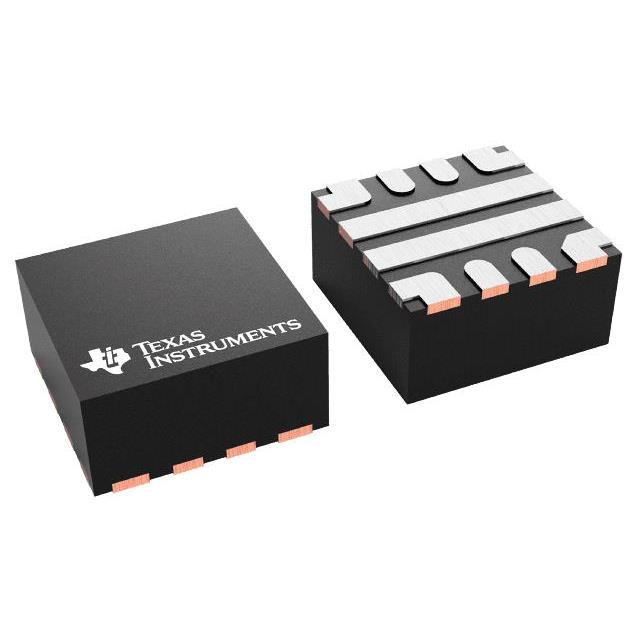

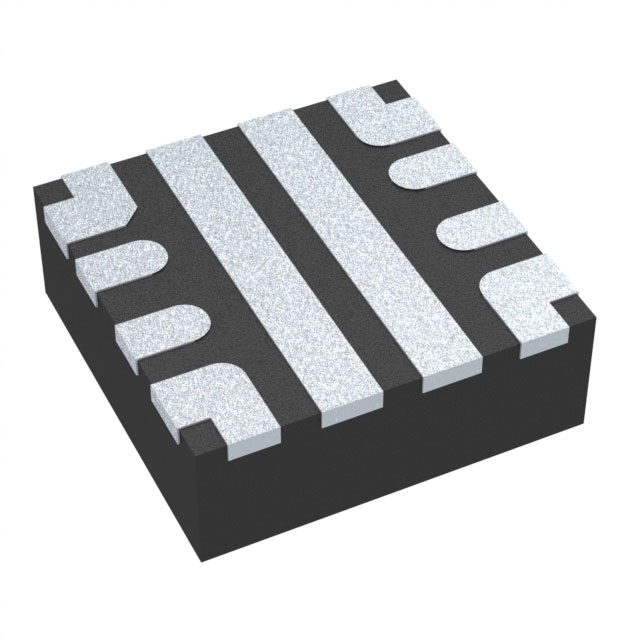

Texas Instruments TPS259814LRPWR	10-VFQFN	-40 °C	125 ¯C	10-VQFN-HR (2x2)	Electronic Fuse	10 %	16 V	2.7 V	High-Side	Surface Mount	10 A
Texas Instruments TPS259814ARPWR	10-VFQFN	-40 °C	125 ¯C	10-VQFN-HR (2x2)	Electronic Fuse	10 %	16 V	2.7 V	High-Side	Surface Mount	10 A

Catalog

2.7-V to 16-V, 10-A, 6-mΩ eFuse with transient overcurrent blanking timer

Key Features

• Wide operating input voltage range: 2.7 V to 16 V20-V absolute maximumIntegrated FET with low on-resistance: R ON = 6 mΩ (typ.)Fast overvoltage protectionAdjustable overvoltage lockout (OVLO) with 1.2-µs (typ.) response timeOvercurrent protection with load current monitor output (ILM)Circuit-breaker responseAdjustable threshold (I LIM) 1.5 A – 11 A±10% accuracy for I LIM > 5 AAdjustable transient blanking timer (ITIMER) to allow peak currents up to 2 × I LIMOutput load current monitor accuracy: ±10% (I OUT ≥ 3 A)Fast-trip response for short-circuit protection640-ns (typ.) response timeAdjustable (2 × I LIM) and fixed thresholdsActive high enable input with adjustable undervoltage lockout threshold (UVLO)Active low enable input with adjustable undervoltage lockout threshold (OVLO)Adjustable output slew rate control (dVdt)Option to drive external FET for reverse current blocking in disabled/OFF stateOvertemperature protectionQuick Output DischargeDigital outputsPower Good (PG) and fault indication ( FLT)UL 2367 recognition (pending)IEC 62368 CB certification (pending)Small footprint: QFN 2-mm × 2-mm, 0.45-mm pitchWide operating input voltage range: 2.7 V to 16 V20-V absolute maximumIntegrated FET with low on-resistance: R ON = 6 mΩ (typ.)Fast overvoltage protectionAdjustable overvoltage lockout (OVLO) with 1.2-µs (typ.) response timeOvercurrent protection with load current monitor output (ILM)Circuit-breaker responseAdjustable threshold (I LIM) 1.5 A – 11 A±10% accuracy for I LIM > 5 AAdjustable transient blanking timer (ITIMER) to allow peak currents up to 2 × I LIMOutput load current monitor accuracy: ±10% (I OUT ≥ 3 A)Fast-trip response for short-circuit protection640-ns (typ.) response timeAdjustable (2 × I LIM) and fixed thresholdsActive high enable input with adjustable undervoltage lockout threshold (UVLO)Active low enable input with adjustable undervoltage lockout threshold (OVLO)Adjustable output slew rate control (dVdt)Option to drive external FET for reverse current blocking in disabled/OFF stateOvertemperature protectionQuick Output DischargeDigital outputsPower Good (PG) and fault indication ( FLT)UL 2367 recognition (pending)IEC 62368 CB certification (pending)Small footprint: QFN 2-mm × 2-mm, 0.45-mm pitch

Description

The TPS25981xx family of eFuses is a highly integrated circuit protection and power management solution in a small package. The devices provide multiple protection modes using very few external components and are a robust defense against overloads, short circuits, voltage surges and excessive inrush current. Output slew rate and inrush current can be adjusted using a single external capacitor. Loads are protected from input overvoltage conditions by cutting off the output if input exceeds an adjustable overvoltage threshold. The devices respond to output overload by actively limiting the current (during start-up) or breaking the circuit (during steady-state). The overcurrent protection threshold as well as the transient overcurrent blanking timer are user-adjustable. The current limit control pin also functions as an analog load current monitor. The devices are available in a 2-mm × 2-mm, 10-pin HotRod™ QFN package for improved thermal performance and reduced system footprint. The devices are characterized for operation over a junction temperature range of –40°C to +125°C. The TPS25981xx family of eFuses is a highly integrated circuit protection and power management solution in a small package. The devices provide multiple protection modes using very few external components and are a robust defense against overloads, short circuits, voltage surges and excessive inrush current. Output slew rate and inrush current can be adjusted using a single external capacitor. Loads are protected from input overvoltage conditions by cutting off the output if input exceeds an adjustable overvoltage threshold. The devices respond to output overload by actively limiting the current (during start-up) or breaking the circuit (during steady-state). The overcurrent protection threshold as well as the transient overcurrent blanking timer are user-adjustable. The current limit control pin also functions as an analog load current monitor. The devices are available in a 2-mm × 2-mm, 10-pin HotRod™ QFN package for improved thermal performance and reduced system footprint. The devices are characterized for operation over a junction temperature range of –40°C to +125°C.
