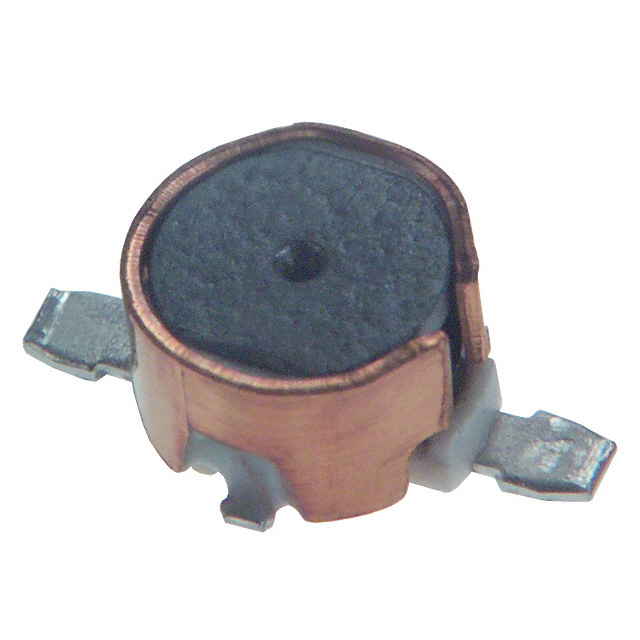

ELT-3KN Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

VOLTAGE STEP UP COIL,3KN TYPE,3.3MM DIA. ROHS COMPLIANT: YES

Part	Material - Core	Current Rating (Amps)	DC Resistance (DCR)	Inductance	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max)
Panasonic Industrial Automation Sales ELT-3KN131B	Ferrite	20 mA	44 Ohm	2 mH	Drum Core Wirewound	0.087 in	2.2 mm	-20 C	105 ░C	Surface Mount	Unshielded	0.13 in	3.3 mm	0.13 in	3.3 mm	Nonstandard	10 %
Panasonic Industrial Automation Sales ELT-3KN128B	Ferrite	45 mA	15 Ohm	560 µH	Drum Core Wirewound	0.087 in	2.2 mm	-20 C	105 ░C	Surface Mount	Unshielded	0.13 in	3.3 mm	0.13 in	3.3 mm	Nonstandard	10 %
Panasonic Industrial Automation Sales ELT-3KN004B	Ferrite	1.7 mA	125 Ohm	14 mH	Drum Core Wirewound			-20 C	105 ░C	Surface Mount	Unshielded	0.13 in	3.3 mm	0.13 in	3.3 mm	Nonstandard	40 %	0.063 in	1.6 mm
Panasonic Industrial Automation Sales ELT-3KN135C	Ferrite	30 mA	32 Ohm	1.1 mH	Drum Core Wirewound			-20 C	105 ░C	Surface Mount	Unshielded	0.13 in	3.1 mm	0.122 in	3.3 mm	Nonstandard	10 %	0.055 in		1.4 mm
Panasonic Industrial Automation Sales ELT-3KN032B	Ferrite	10 mA	185 Ohm	25 mH	Drum Core Wirewound	0.087 in	2.2 mm	-20 C	105 ░C	Surface Mount	Unshielded	0.13 in	3.3 mm	0.13 in	3.3 mm	Nonstandard	40 %
Panasonic Industrial Automation Sales ELT-3KN124B	Ferrite	0.015 A	85 Ohm	4 mH	Drum Core Wirewound	0.087 in	2.2 mm	-20 C	105 ░C	Surface Mount	Unshielded	0.13 in	3.3 mm	0.13 in	3.3 mm	Nonstandard	10 %
Panasonic Industrial Automation Sales ELT-3KN020C	Ferrite	2.5 mA	150 Ohm	30 mH	Drum Core Wirewound			-20 C	105 ░C	Surface Mount	Unshielded	0.13 in	3.3 mm	0.13 in	3.3 mm	Nonstandard	30 %		1.85 mm		0.073 in
Panasonic Industrial Automation Sales ELT-3KN101C	Ferrite	1.4 mA	285 Ohm	10 mH	Drum Core Wirewound	0.087 in	2.2 mm	-20 C	105 ░C	Surface Mount	Unshielded	0.13 in	3.3 mm	0.13 in	3.3 mm	Nonstandard	10 %
Panasonic Industrial Automation Sales ELT-3KN135B	Ferrite	30 mA	32 Ohm	1.1 mH	Drum Core Wirewound			-20 C	105 ░C	Surface Mount	Unshielded	0.13 in	3.1 mm	0.122 in	3.3 mm	Nonstandard	10 %	0.055 in		1.4 mm
Panasonic Industrial Automation Sales ELT-3KN042C	Ferrite	1.4 mA	32 Ohm	20 mH	Drum Core Wirewound			-20 C	105 ░C	Surface Mount	Unshielded	0.13 in	3.1 mm	0.122 in	3.3 mm	Nonstandard	40 %	0.055 in		1.4 mm
