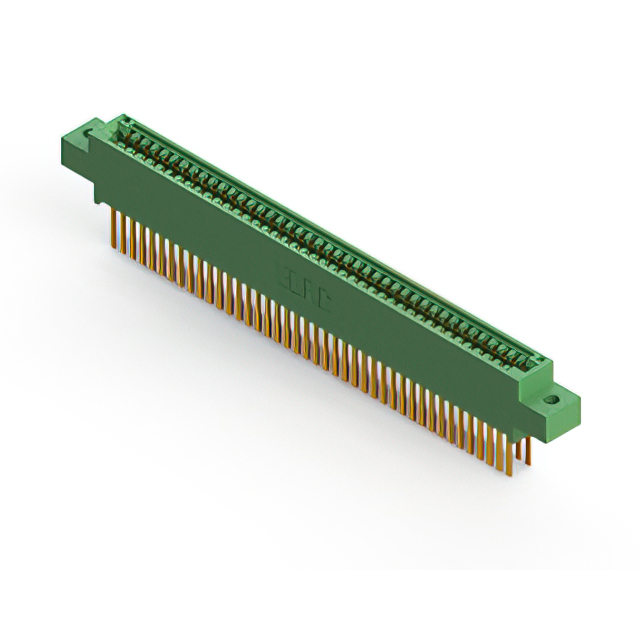

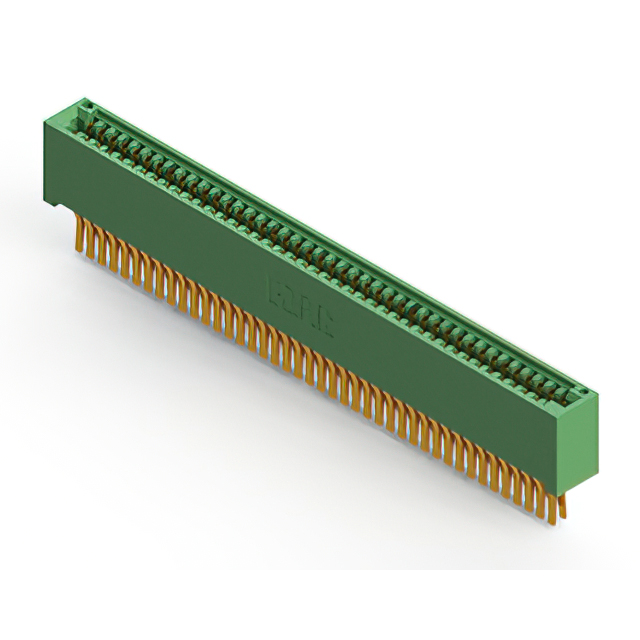

845-084 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 84POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Gender | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Contact Type | Contact Material | Mounting Type | Contact Finish | Flange Feature | Number of Positions [custom] | Number of Positions/Bay/Row | Termination | Color | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Dual | Cantilever | Copper Alloy | Right Angle Through Hole | Gold | 4-40 Threaded Insert Top Mount Opening | 84 | 42 | Solder | Green | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Dual | Cantilever | Copper Alloy | Board Edge Straddle Mount | Gold | M3 Threaded Insert Top Mount Opening | 84 | 42 | Solder | Green | Card Extender | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Dual | Cantilever | Copper Alloy | Through Hole | Gold | Flush Mount M3 Threaded Insert Top Opening | 84 | 42 | Wire Wrap | Green | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Dual | Cantilever | Copper Alloy | Board Edge Straddle Mount | Gold | Flush Mount Top Opening Unthreaded | 84 | 42 | Solder | Green | Card Extender | 0.156 " | 3.96 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Dual | Cantilever | Copper Alloy | Board Edge Straddle Mount | Gold | 84 | 42 | Solder | Green | Card Extender | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Dual | Cantilever | Copper Alloy | Through Hole | Gold | Side Mount Opening Unthreaded | 84 | 42 | Solder | Green | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Dual | Cantilever | Copper Alloy | Through Hole | Gold | 84 | 42 | Wire Wrap | Green | 0.128 " | 3.25 mm | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Dual | Cantilever | Copper Alloy | Board Edge Straddle Mount | Gold | M3 Threaded Insert Top Mount Opening | 84 | 42 | Solder | Green | Card Extender | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Dual | Cantilever | Copper Alloy | Through Hole | Gold | Flush Mount Top Opening Unthreaded | 84 | 42 | Wire Wrap | Green | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 2 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Dual | Cantilever | Copper Alloy | Through Hole | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 84 | 42 | Solder | Green |
