320.03 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACT SPST-NO 0.025A 50V
| Part | Actuator Material | Switch Travel | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Mounting Type | Contact Rating @ Voltage | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical [z] | Termination Style | Circuit | Operating Force | Illumination | Actuator Orientation | Switch Function | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Polycarbonate (PC) | 0.6 mm | 1000000 Cycles | -20 ░C | 70 °C | Rectangular Button | Through Hole | 0.025 A | 12.4 mm | 12.4 mm | 20.2 mm | PC Pin | SPST-NO | 135 gf | Non-Illuminated | Top Actuated | Off-Mom | Gray Cap |
E-Switch | ||||||||||||||||||
E-Switch | Polycarbonate (PC) | 0.6 mm | 1000000 Cycles | -20 ░C | 70 °C | Round Button | Through Hole | 0.025 A | 12.4 mm | 12.4 mm | 18.5 mm | PC Pin | SPST-NO | 135 gf | Non-Illuminated | Top Actuated | Off-Mom | Red Cap |

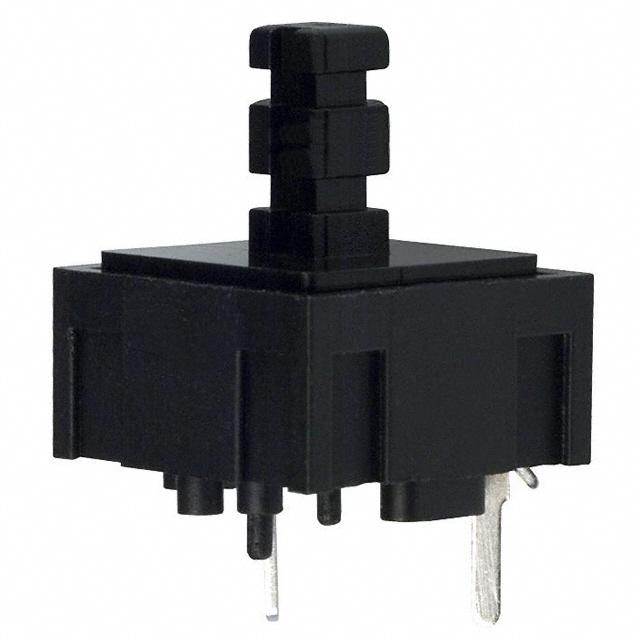

 E-Switch | Polycarbonate (PC) | 0.6 mm | 1000000 Cycles | -20 ░C | 70 °C | Plunger for Cap | Through Hole | 0.025 A | 12.4 mm | 12.4 mm | PC Pin | SPST-NO | 135 gf | Non-Illuminated | Top Actuated | Off-Mom | Tactile Feedback | |
E-Switch | Polycarbonate (PC) | 0.6 mm | 1000000 Cycles | -20 ░C | 70 °C | Round Button | Through Hole | 0.025 A | 12.4 mm | 12.4 mm | 18.5 mm | PC Pin | SPST-NO | 135 gf | Non-Illuminated | Top Actuated | Off-Mom | Green Cap |
