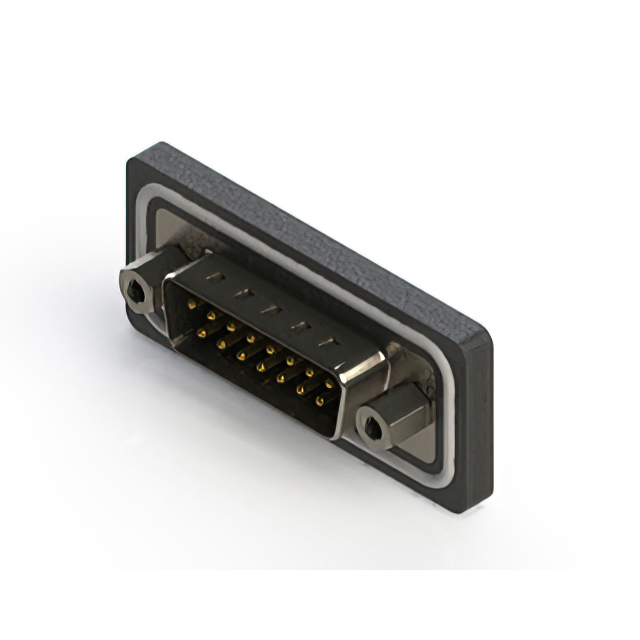

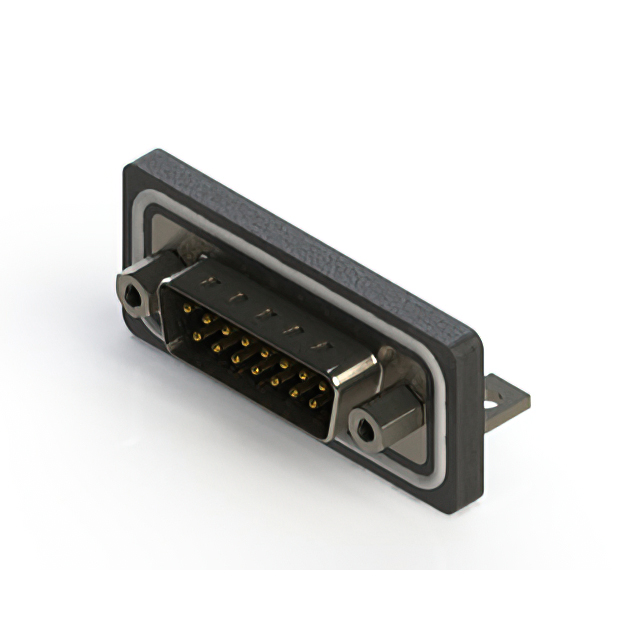

629-W15 Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB STANDARD CONNECTORS WATERPROOF D-SUB CONNECTORS
| Part | Contact Material | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Connector Style | Shell Material, Finish | Backset Spacing | Backset Spacing | Shell Size, Connector Layout | Material Flammability Rating | Features | Number of Rows [custom] | Contact Finish | Contact Type | Mounting Type | Termination | Number of Positions | Flange Feature | Current Rating (Amps) | Ingress Protection | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Black | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | 0.38 µm | 15 µin | Plug Male Pins | Combo D-Sub | Nickel Plated Steel | 10.3 mm | 0.406 in | 2 | UL94 V-0 | Grounding Indents Shielded | 2 | Gold | Signal | Right Angle Through Hole | Solder | 15 | 4-40 Mating Side Female Screwlock | 5 A | IP67 - Dust Tight Waterproof | |
 EDAC Inc. | Copper Alloy | Black | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Plug Male Pins | Combo D-Sub | Nickel Plated Steel | 10.3 mm | 0.406 in | 2 | UL94 V-0 | Grounding Indents Shielded | 2 | Gold | Signal | Right Angle Through Hole | Solder | 15 | 4-40 Mating Side Female Screwlock | 5 A | IP67 - Dust Tight Waterproof | Flash | ||
 EDAC Inc. | Copper Alloy | Black | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | 0.76 Ám | 30 Áin | Plug Male Pins | Combo D-Sub | Nickel Plated Steel | 10.3 mm | 0.406 in | 2 | UL94 V-0 | Grounding Indents Mounting Brackets Shielded | 2 | Gold | Signal | Right Angle Through Hole | Solder | 15 | 4-40 Mating Side Female Screwlock | 5 A | IP67 - Dust Tight Waterproof | |
 EDAC Inc. | Copper Alloy | Black | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | 0.76 Ám | 30 Áin | Plug Male Pins | Combo D-Sub | Nickel Plated Steel | 10.3 mm | 0.406 in | 2 | UL94 V-0 | Grounding Indents Shielded | 2 | Gold | Signal | Right Angle Through Hole | Solder | 15 | 4-40 Mating Side Female Screwlock | 5 A | IP67 - Dust Tight Waterproof | |
 EDAC Inc. | Copper Alloy | Black | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | 0.38 µm | 15 µin | Plug Male Pins | Combo D-Sub | Nickel Plated Steel | 10.3 mm | 0.406 in | 2 | UL94 V-0 | Grounding Indents Mounting Brackets Shielded | 2 | Gold | Signal | Right Angle Through Hole | Solder | 15 | 4-40 Mating Side Female Screwlock | 5 A | IP67 - Dust Tight Waterproof |
