NB7V52M Series

D Flip Flop, 1.8 V / 2.5 V Differential, with Reset and CML Outputs

Catalog

D Flip Flop, 1.8 V / 2.5 V Differential, with Reset and CML Outputs

Part	Type	Function	Primary Attributes	Contents	Supplied Contents	Utilized IC / Part	Clock Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Max Propagation Delay @ V, Max CL	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Output Type	Mounting Type	Current - Quiescent (Iq)	Number of Elements	Trigger Type	Package / Case	Number of Bits per Element

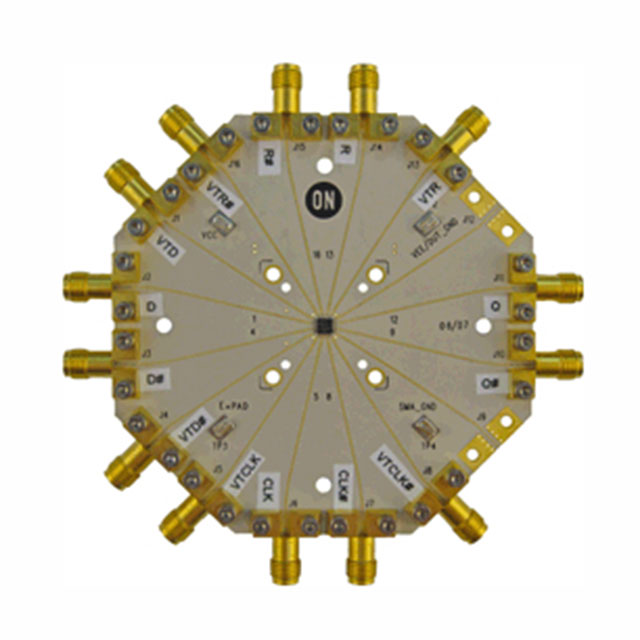

ON Semiconductor NB7V52MMNGEVB	Logic	*	D-Type Flip-Flop	Board(s)	Board(s)	NB7V52M
ON Semiconductor NB7V52MMNHTBG	D-Type	Reset					12 GHz	85 °C	-40 °C	0.35 ns	1.71 V	2.625 V	16-QFN (3x3)	Differential	Surface Mount	110 mA	1	Negative Positive	16-VFQFN Exposed Pad	1

Catalog

D Flip Flop, 1.8 V / 2.5 V Differential, with Reset and CML Outputs

Key Features

• Maximum Input Clock Frequency > 10GHz Typical

• Random Clock Jitter < 0.8ps RMS

• 30ps Typical Rise and Fall Times

• Differential CML Outputs, 400mV peak-to-peak, typical

• Operating Range: VCC = 1.71V to 2.625V with VEE = 0V

• Internal 50-ohm Input Termination Resistors

-40C to +85C Ambient Operating Temperature

• Instrumentation

Description

The NB7V52M is a 10GHz differential Data and Clock D flip-flop with a Differential asynchronous Reset. The differential D/Db, CLK/CLKb and R/Rb inputs incorporate internal 50-ohm termination resistors and will accept LVPECL, CML, LVDS logic levels. When Clock transitions from Low to High, Data will be transferred to the differential CML outputs. The differential Clock inputs allow the NB7V52M to also be used as a negative edge triggered device. The 16mA differential CML outputs provide matching internal 50-ohm terminations and produce 400 mV output swings when externally terminated with a 50-ohm resistor to VCC. The NB7V52M is offered in a low profile 3mm x 3mm 16-pin QFN package.
