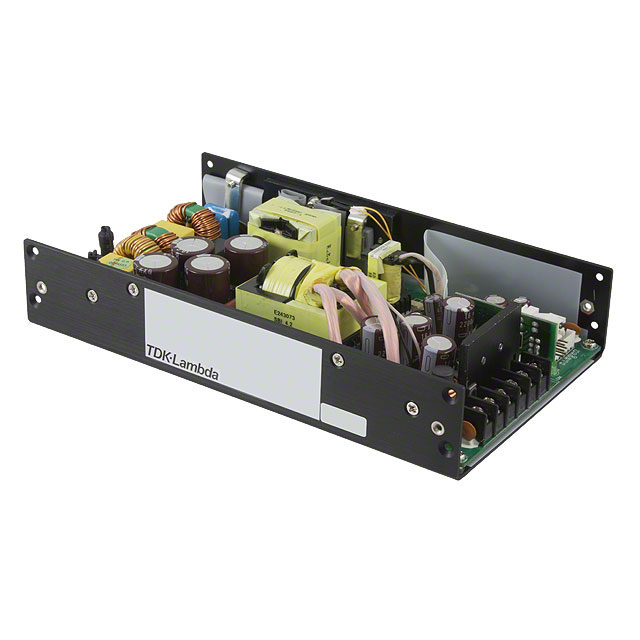

CSS500 Series

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, FIXED, 54 V

Part	Features	Operating Temperature [Max]	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Applications	Voltage - Isolation	Current - Output 1	Type	Approval Agency	Efficiency	Voltage - Output 1	Number of Outputs	Voltage - Output 1 [custom]
TDK Corporation CSS500-54/S	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	70 °C	Chassis Mount	264 VAC	90 VAC	228.6 mm	1.63 in	4.7 in	119.4 mm	41.4 mm	9 in	360 W 500 W	Medical	4000 V	6.67 A	Open Frame	CE	87 %	54 V	1
TDK Corporation CSS500-12/S	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	70 °C	Chassis Mount	264 VAC	90 VAC	228.6 mm	1.63 in	4.7 in	119.4 mm	41.4 mm	9 in	360 W 500 W	Medical	4000 V	30 A	Open Frame	CE	87 %	12 V	1
TDK Corporation CSS500-30/SI	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	70 °C	Chassis Mount	264 VAC	90 VAC	228.6 mm	1.63 in	4.7 in	119.4 mm	41.4 mm	9 in	360 W 500 W	Medical	4000 V	12 A	Open Frame	CE	87 %	30 V	1
TDK Corporation CSS500-24/S	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	70 °C	Chassis Mount	264 VAC	90 VAC	228.6 mm	1.63 in	4.7 in	119.4 mm	41.4 mm	9 in	360 W 500 W	Medical	4000 V	15 A	Open Frame	CE	87 %	24 V	1
TDK Corporation CSS500-24/I	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	70 °C	Chassis Mount	264 VAC	90 VAC	228.6 mm	1.63 in	4.7 in	119.4 mm	41.4 mm	9 in	360 W 500 W	Medical	4000 V	15 A	Open Frame	CE	87 %	24 V	1
TDK Corporation CSS500-30	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	70 °C	Chassis Mount	264 VAC	90 VAC	228.6 mm	1.63 in	4.7 in	119.4 mm	41.4 mm	9 in	360 W 500 W	Medical	4000 V	12 A	Open Frame	CE	87 %	30 V	1
TDK Corporation CSS500-36/S	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	70 °C	Chassis Mount	264 VAC	90 VAC	228.6 mm	1.63 in	4.7 in	119.4 mm	41.4 mm	9 in	360 W 500 W	Medical	4000 V	10 A	Open Frame	CE	87 %		1	36 V
TDK Corporation CSS500-30/TI	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	70 °C	Chassis Mount	264 VAC	90 VAC	228.6 mm	1.63 in	4.7 in	119.4 mm	41.4 mm	9 in	360 W 500 W	Medical	4000 V	12 A	Open Frame	CE	87 %	30 V	1
TDK Corporation CSS500-36/SI	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	70 °C	Chassis Mount	264 VAC	90 VAC	228.6 mm	1.63 in	4.7 in	119.4 mm	41.4 mm	9 in	360 W 500 W	Medical	4000 V	10 A	Open Frame	CE	87 %		1	36 V
TDK Corporation CSS500-48/T	Adjustable Output Load Sharing Remote Sense Standby Output Universal Input	70 °C	Chassis Mount	264 VAC	90 VAC	228.6 mm	1.63 in	4.7 in	119.4 mm	41.4 mm	9 in	360 W 500 W	Medical	4000 V		Open Frame	CE	87 %	48 V	1
