MS3106E28 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
PLUG
| Part | Cable Opening | Fastening Type | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Insert Material | Color | Backshell Material | Plating | Primary Material | Shielding | Orientation | Number of Positions | Contact Material | Shell Finish | Applications | Qualification | Shell Material | Connector Type | Contact Finish - Mating | Shell Size - Insert Width | Shell Size - Insert Length | Ingress Protection | Features | Termination | Voltage Rating (DC) | Voltage Rating (AC) | Grade | Current Rating | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||||
Amphenol Aerospace Operations | 0.922 in | Threaded | Free Hanging (In-Line) | 125 °C | -55 °C | Neoprene | Olive Drab | Aluminum Alloy | Olive Drab Chromate over Cadmium | Metal | Unshielded | X | 22 | Copper Alloy | Cadmium Olive Drab Chromate | Marine Military | MIL-5015 | Aluminum Alloy | Female Sockets Plug | Silver | 11 mm | 28 mm | Environment Resistant | Backshell Cable Clamp Coupling Nut | Solder Cup | ||||||

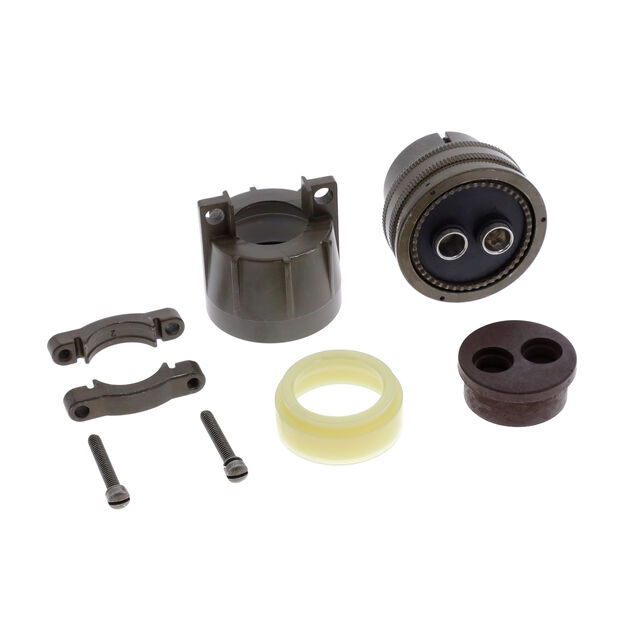

 Amphenol Aerospace Operations | 0.922 in | Threaded | Free Hanging (In-Line) | 125 °C | -55 °C | Neoprene | Olive Drab | Metal | Unshielded | N (Normal) | 2 | Copper Alloy | Cadmium Olive Drab Chromate | Marine Military | MIL-DTL-5015 | Aluminum Alloy | Female Sockets Plug | Silver | 7 mm | 28 mm | Environment Resistant | Backshell Cable Clamp Coupling Nut | Solder Cup | 1250 VDC | 900 VAC | Military | 80 A | ||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||||
 Amphenol Aerospace Operations | 0.922 in | Threaded | Free Hanging (In-Line) | 125 °C | -55 °C | Neoprene | Olive Drab | Aluminum Alloy | Olive Drab Chromate over Cadmium | Metal | Unshielded | N (Normal) | 12 | Copper Alloy | Cadmium Olive Drab Chromate | Marine Military | MIL-5015 | Aluminum Alloy | Male Pins Plug | Silver | Environment Resistant | Backshell Cable Clamp Coupling Nut | Solder Cup | 51 | 28 | ||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||||
Amphenol Aerospace Operations |
