Reed Relays HV RELAYS
Reed Relays HV RELAYS
| Part | Contact Material | Coil Type | Mounting Type | Release Time | Must Operate Voltage | Operate Time | Coil Current | Contact Rating (Current) | Coil Voltage | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Must Release Voltage | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

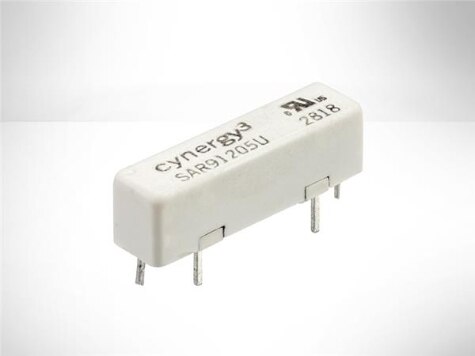

 Sensata-Crydom | Rhodium (Rh) | Non Latching | Through Hole | 0.5 ms | 9 VDC | 1 ms | 0.02 A | 0.5 A | 12 VDC | SPST-NO (1 Form A) | -20 ░C | 70 °C | PC Pin | 1.25 VDC | 20 VDC 20 VAC |
 Sensata-Crydom | Rhodium (Rh) | Non Latching | Through Hole | 0.5 ms | 20 VDC | 1 ms | 24 mA | 0.5 A | 24 VDC | SPST-NO (1 Form A) | -20 ░C | 70 °C | PC Pin | 4 VDC | 20 VDC 20 VAC |
Sensata-Crydom | Rhodium (Rh) | Non Latching | Through Hole | 0.5 ms | 9 VDC | 1 ms | 0.02 A | 0.5 A | 12 VDC | SPST-NO (1 Form A) | -20 ░C | 70 °C | PC Pin | 1.25 VDC | 20 VDC 20 VAC |
Sensata-Crydom | Rhodium (Rh) | Non Latching | Through Hole | 0.5 ms | 20 VDC | 1 ms | 24 mA | 0.5 A | 24 VDC | SPST-NO (1 Form A) | -20 ░C | 70 °C | PC Pin | 4 VDC | 20 VDC 20 VAC |
Sensata-Crydom | Rhodium (Rh) | Non Latching | Through Hole | 0.5 ms | 3.7 VDC | 1 ms | 35.7 mA | 0.5 A | 5 VDC | SPST-NO (1 Form A) | -20 ░C | 70 °C | PC Pin | 0.5 VDC | 20 VDC 20 VAC |
Sensata-Crydom | Rhodium (Rh) | Non Latching | Through Hole | 0.5 ms | 3.7 VDC | 1 ms | 35.7 mA | 0.5 A | 5 VDC | SPST-NO (1 Form A) | -20 ░C | 70 °C | PC Pin | 0.5 VDC | 20 VDC 20 VAC |
