KAS Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 4 W, 12 V, 333 MA

Part	Package / Case	Approval Agency	Power (Watts)	Applications	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Type	Mounting Type	Efficiency	Number of Outputs	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Load Regulation	Line Regulation	Operating Temperature [Max]	Operating Temperature [Min]
TDK Corporation KAS4-12	6-DIP Module	CE cURus	4 W	ITE (Commercial)	333 mA	305 VAC	90 VAC	Enclosed	Through Hole	76 %	1	12 V	27.4 mm	37.1 mm	17.5 mm	1.46 in	1.08 in	0.69 in

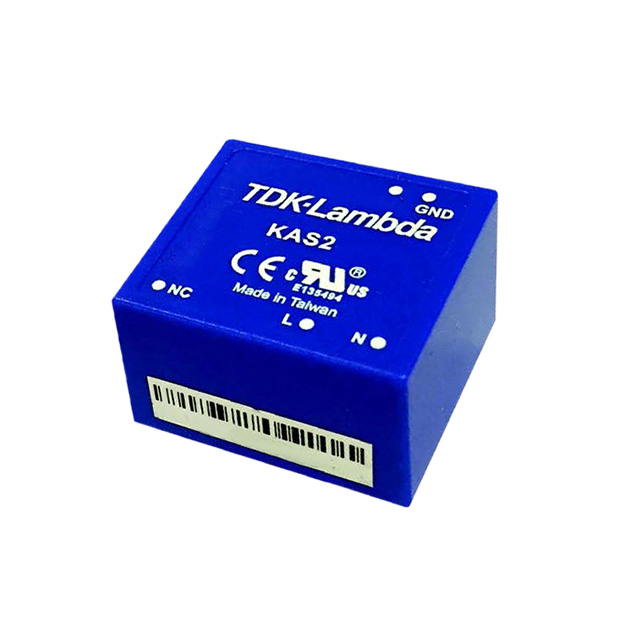

TDK Corporation KAS2-9	5-DIP Module	CE cURus	2 W	ITE (Commercial)	220 mA	305 VAC	90 VAC	Enclosed	Through Hole	73 %	1	9 V	25.9 mm	28.4 mm	17 mm	1.12 in	1.02 in	0.67 in	540 mV	450 mV	80 ¯C	-40 °C
TDK Corporation KAS4-15	6-DIP Module	CE cURus	4 W	ITE (Commercial)	267 mA	305 VAC	90 VAC	Enclosed	Through Hole	76 %	1	15 V	27.4 mm	37.1 mm	17.5 mm	1.46 in	1.08 in	0.69 in
TDK Corporation KAS4-24	6-DIP Module	CE cURus	4 W	ITE (Commercial)	167 mA	305 VAC	90 VAC	Enclosed	Through Hole	77 %	1	24 V	27.4 mm	37.1 mm	17.5 mm	1.46 in	1.08 in	0.69 in
