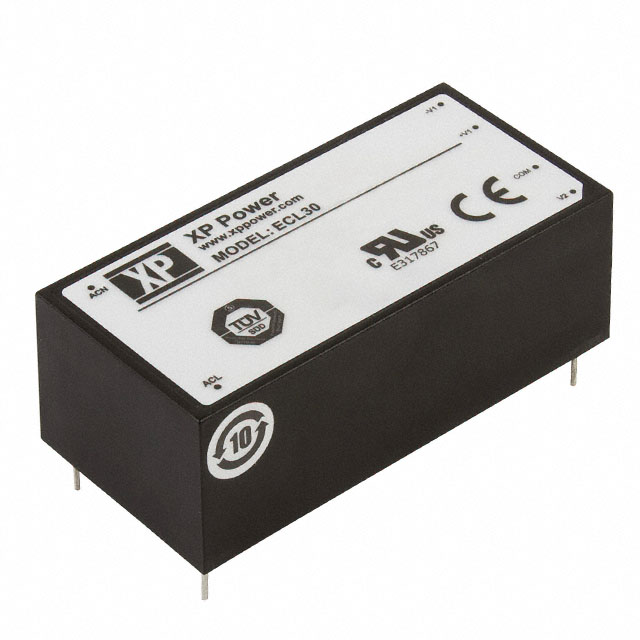

ECL30UT03 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 5V +/-15V 30W
| Part | Line Regulation | Load Regulation | Weight | Weight | Voltage - Output 3 | Features | Voltage - Output 2 | Package / Case | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Number of Outputs | Approval Agency | Applications | Efficiency | Current - Output (Max) [Max] | Current - Output (Max) | Current - Output (Max) | Standard Number | Power (Watts) | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 0.5 % | ±1% | 155.13 g | 0.342 lb | -15 V | Universal Input | 15 V | 7-DIP Module | Through Hole | 1.1 in | 38.1 mm | 27.9 mm | 78.7 mm | 3.1 in | 1.5 " | 70 °C | -20 °C | Enclosed | 3 | CSA cUL EN IEC UL | ITE (Commercial) | 81 % | 3 A | 500 mA | 500 mA | 62368-1 | 30 Watts | 5 V |
 XP Power | 0.5 % | ±1% | 59.87 g | 0.132 lb | -15 V | Universal Input | 15 V | 7-DIP Module | Through Hole | 1.05 in | 34.6 mm | 26.7 mm | 75.2 mm | 2.96 in | 1.36 " | 70 °C | -20 °C | Open Frame | 3 | CSA cUL EN IEC UL | ITE (Commercial) | 81 % | 3 A | 500 mA | 500 mA | 62368-1 | 30 Watts | 5 V |
