TDA856 Series

Catalog

IC AMP CLASS B STEREO 55W DBS17P

Part	Package / Case	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Name	Output Type	Load Impedance	Channels	Maximum Output Power (per Channel)	Type	Features	Operating Temperature (Max)	Operating Temperature (Min)	Package Length	Package Features	Package Width
NXP USA Inc. TDA8566Q/N2,112	17-SIP Formed Leads	Through Hole	18 V	6 V	DBS17P	2-Channel (Stereo)	2 Ohm	2	55 W	Class B	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	85 °C	-40 °C

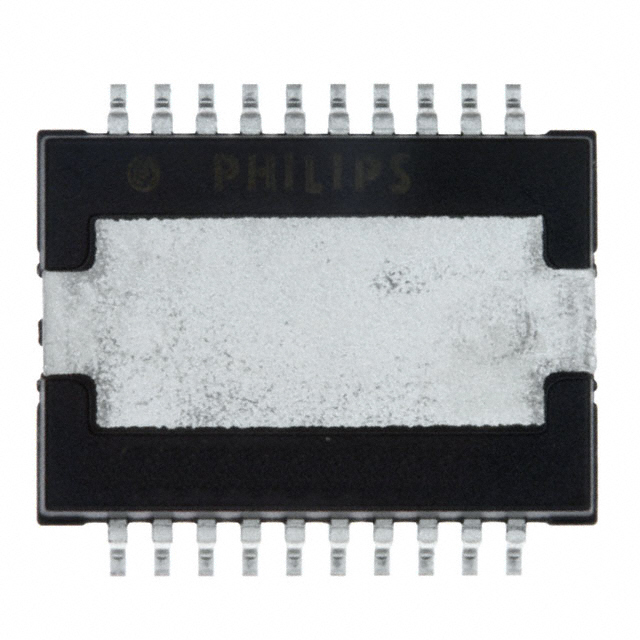

NXP USA Inc. TDA8566TH/N2S,112		Surface Mount	18 V	6 V	20-HSOP 20-SOIC	2-Channel (Stereo)	2 Ohm	2	55 W	Class B	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	85 °C	-40 °C	0.433 in	Exposed Pad	11 mm
NXP USA Inc. TDA8569Q/N1,112	23-SIP Formed Leads	Through Hole	18 V	6 V	DBS23P	4-Channel (Quad)	2 Ohm	4	40 W	Class B	Depop Mute Short-Circuit and Thermal Protection Standby	85 °C	-40 °C

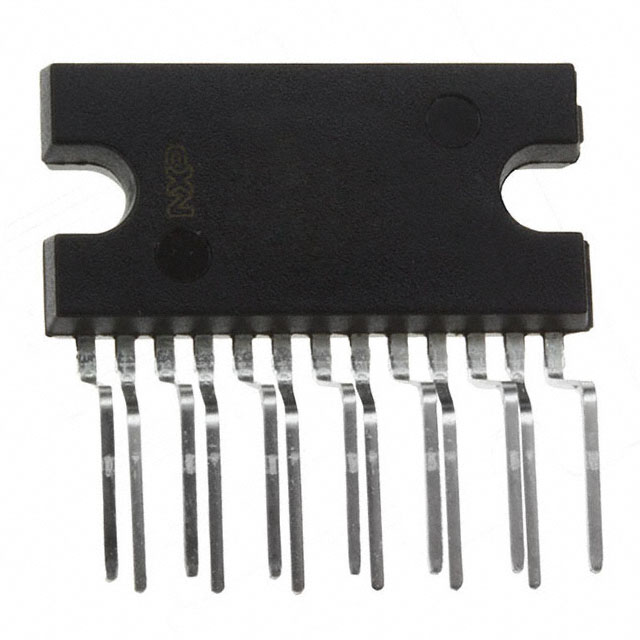

NXP USA Inc. TDA8563Q/N2/S10,11	13-SIP Formed Leads	Through Hole	18 V	6 V	13-PDBS	2-Channel (Stereo)	2 Ohm	2	55 W	Class B	Depop Mute Short-Circuit and Thermal Protection Standby	85 °C	-40 °C
NXP USA Inc. TDA8560Q/N1,112	13-SIP Formed Leads	Through Hole	18 V	6 V	13-PDBS	2-Channel (Stereo)	2 Ohm	2	55 W	Class B	Depop Mute Short-Circuit and Thermal Protection Standby	85 °C	-40 °C
NXP USA Inc. TDA8566TH/N2C,118		Surface Mount	18 V	6 V	20-HSOP 20-SOIC	2-Channel (Stereo)	2 Ohm	2	55 W	Class B	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	85 °C	-40 °C	0.433 in	Exposed Pad	11 mm
NXP USA Inc. TDA8566TH1/N2S,118		Surface Mount	18 V	6 V	24-BSOP 24-HSOP	2-Channel (Stereo)	2 Ohm	2	55 W	Class B	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	85 °C	-40 °C	0.433 in	Exposed Pad	11 mm
NXP USA Inc. TDA8569Q/N1S,112	23-SIP Formed Leads	Through Hole	18 V	6 V	DBS23P	4-Channel (Quad)	2 Ohm	4	40 W	Class B	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	85 °C	-40 °C
NXP USA Inc. TDA8561Q/N3C,112	17-SIP Formed Leads	Through Hole	18 V	6 V	DBS17P	2-Channel (Stereo) or 4-Channel (Quad)	2 Ohm 4 Ohm	2 4	12 W 24 W	Class B	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	85 °C	-40 °C
NXP USA Inc. TDA8569Q/N1C,112	23-SIP Formed Leads	Through Hole	18 V	6 V	DBS23P	4-Channel (Quad)	2 Ohm	4	40 W	Class B	Depop Mute Short-Circuit and Thermal Protection Standby	85 °C	-40 °C
