ECS-H1 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP TANT 22UF 20% 16V 2917

Part	Voltage - Rated	Manufacturer Size Code	Features	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case
Panasonic Electronic Components ECS-H1CD226R	16 V	D	General Purpose	2917 (7343 Metric)	-55 C	125 °C	Surface Mount	20 %	0.118 "	3 mm	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	22 µF
Panasonic Electronic Components ECS-H1AD336R	10 V	D	General Purpose	2917 (7343 Metric)	-55 C	125 °C	Surface Mount	20 %	0.118 "	3 mm	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	33 ÁF
Panasonic Electronic Components ECS-H1ED106R	25 VDC	D	General Purpose	2917 (7343 Metric)	-55 C	125 °C	Surface Mount	20 %	0.118 "	3 mm	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	10 µF
Panasonic Electronic Components ECS-H1EC335R	25 VDC		General Purpose	2312 (6032 Metric)	-55 C	125 °C	Surface Mount	20 %			Molded	0.126 in	6 mm	0.236 in	3.2 mm	3.3 µF	2.7 mm	0.106 in
Panasonic Electronic Components ECS-H1AD476R	10 V	D	General Purpose	2917 (7343 Metric)	-55 C	125 °C	Surface Mount	20 %	0.118 "	3 mm	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	47 µF
Panasonic Electronic Components ECS-H1AC156R	10 V		General Purpose	2312 (6032 Metric)	-55 C	125 °C	Surface Mount	20 %			Molded	0.126 in	6 mm	0.236 in	3.2 mm	15 µF	2.7 mm	0.106 in
Panasonic Electronic Components ECS-H1DC475R	20 V		General Purpose	2312 (6032 Metric)	-55 C	125 °C	Surface Mount	20 %			Molded	0.126 in	6 mm	0.236 in	3.2 mm	4.7 µF	2.7 mm	0.106 in
Panasonic Electronic Components ECS-H1EX155R	25 VDC	X	General Purpose	1411	-55 C	125 °C	Surface Mount	20 %			Molded	0.11 "	3.5 mm	0.138 in	2.8 mm	1500 nF	1.8 mm	0.071 in	3528 Metric
Panasonic Electronic Components ECS-H1VC225R	35 V		General Purpose	2312 (6032 Metric)	-55 C	125 °C	Surface Mount	20 %			Molded	0.126 in	6 mm	0.236 in	3.2 mm	2.2 µF	2.7 mm	0.106 in

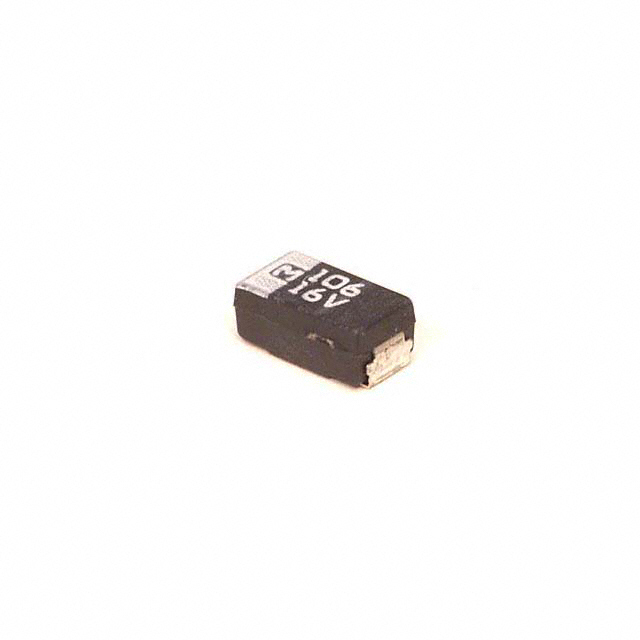

Panasonic Electronic Components ECS-H1CC106R	16 V		General Purpose	2312 (6032 Metric)	-55 C	125 °C	Surface Mount	20 %			Molded	0.126 in	6 mm	0.236 in	3.2 mm	10 µF	2.7 mm	0.106 in
