3414 Series

Catalog

CONN RCPT 34P IDC 26-28AWG GOLD

Part	Connector Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Contact Finish	Mounting Type	Wire Type	Pitch	Pitch	Row Spacing	Row Spacing	Contact Type	Features	Number of Rows [custom]	Color	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]
3M Electronic Specialty 3414-7634	Receptacle	IDC	30 Áin	0.76 Ám	34	Gold	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Female Socket	Closed End Polarizing Key Strain Relief	2	Gray
3M Electronic Specialty 3414-7000	Receptacle	IDC	30 Áin	0.76 Ám	34	Gold	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Female Socket	Closed End	2	Gray
3M Electronic Specialty 3414-H600	Receptacle	IDC	30 Áin	0.76 Ám	34	Gold	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Female Socket	Feed Through Polarizing Key	2	Gray	28 AWG	Stranded or Solid	26 AWG

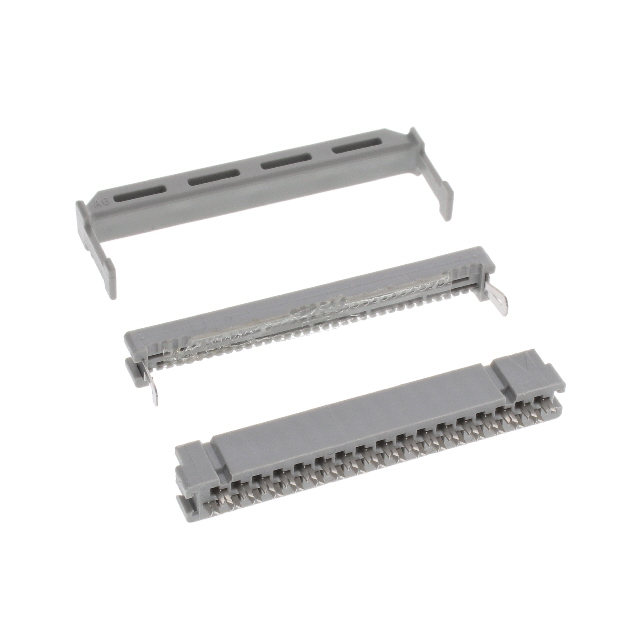

3M Electronic Specialty 3414-7034	Receptacle	IDC	30 Áin	0.76 Ám	34	Gold	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Female Socket	Closed End Strain Relief	2	Gray
3M Electronic Specialty 3414-6634	Receptacle	IDC	30 Áin	0.76 Ám	34	Gold	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Female Socket	Feed Through Polarizing Key Strain Relief	2	Gray

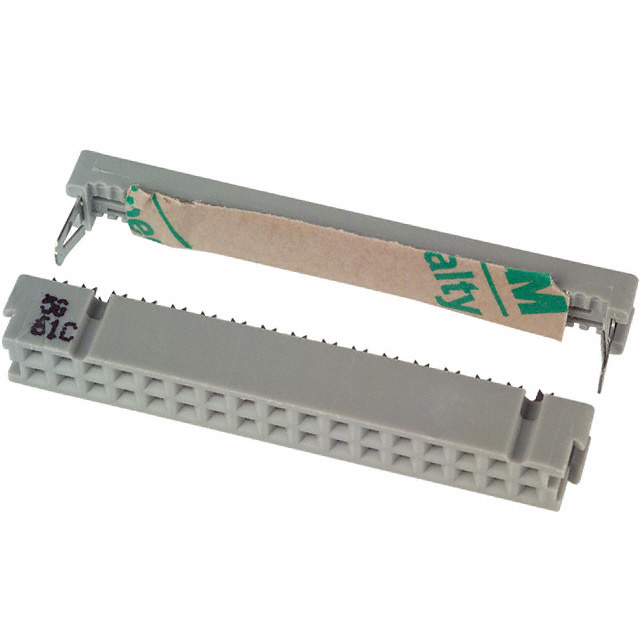

3M Electronic Specialty 3414-6000	Receptacle	IDC	30 Áin	0.76 Ám	34	Gold	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Female Socket	Feed Through	2	Gray
3M Electronic Specialty 3414-6600	Receptacle	IDC	30 Áin	0.76 Ám	34	Gold	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Female Socket	Feed Through Polarizing Key	2	Gray	28 AWG	Stranded or Solid	26 AWG

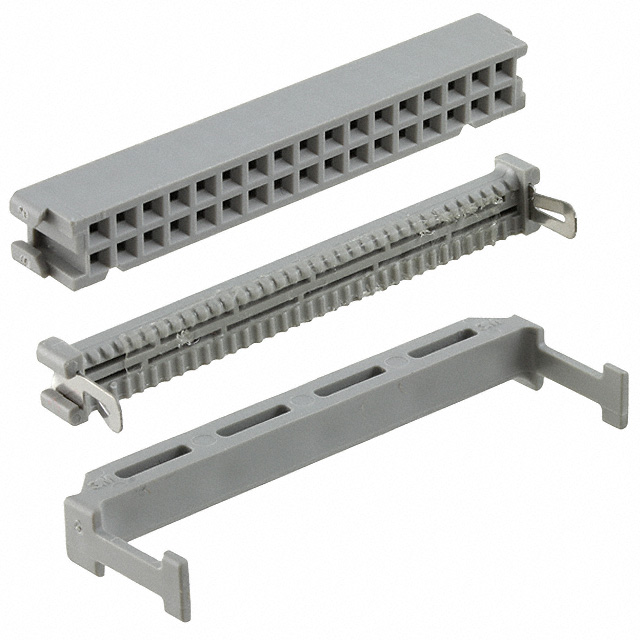

3M Electronic Specialty 3414-6034	Receptacle	IDC	30 Áin	0.76 Ám	34	Gold	Free Hanging (In-Line)	Ribbon Cable	0.1 "	2.54 mm	2.54 mm	0.1 "	Female Socket	Feed Through Strain Relief	2	Gray
