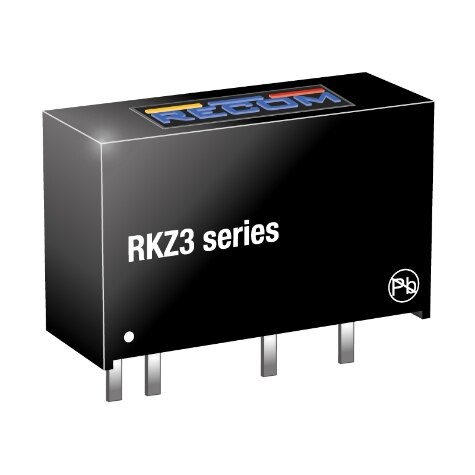

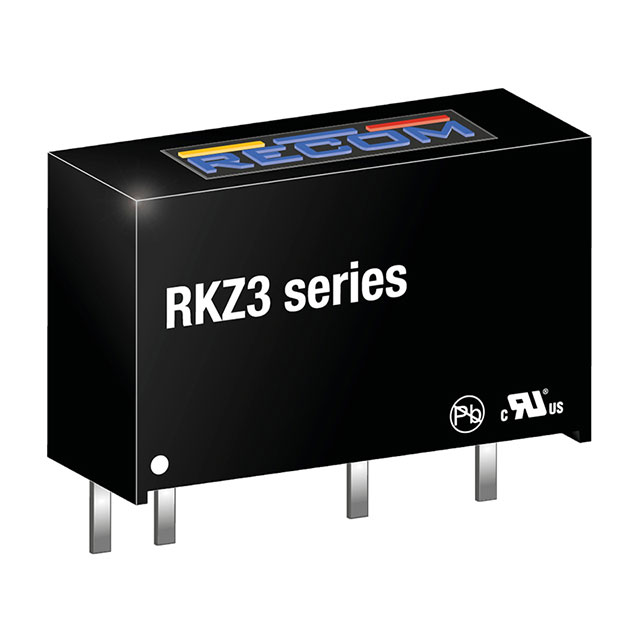

RKZ3 Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3W 24VIN 5VOUT 600MA SIP7
| Part | Type | Current - Output (Max) [Max] | Voltage - Output 1 | Mounting Type | Applications | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Package / Case | Voltage - Input (Max) [Max] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Isolated Module | 600 mA | 5 V | Through Hole | ITE (Commercial) | 3000 V | 0.48 " | 0.3 " | 12.2 mm | 0.77 in | 7.5 mm | 19.6 mm | 86 % | 7-SIP Module 4 Leads | 26.4 V | 3 W | 90 °C | -40 C | 21.6 V | 1 |
Recom Power | Isolated Module | 600 mA | 5 V | Through Hole | ITE (Commercial) | 3000 V | 0.48 " | 0.3 " | 12.2 mm | 0.77 in | 7.5 mm | 19.6 mm | 84 % | 7-SIP Module 4 Leads | 13.2 V | 3 W | 90 °C | -40 C | 10.8 V | 1 |
 Recom Power | Isolated Module | 250 mA | 12 V | Through Hole | ITE (Commercial) | 4000 V | 0.48 " | 0.3 " | 12.2 mm | 0.77 in | 7.5 mm | 19.6 mm | 90 % | 7-SIP Module 4 Leads | 26.4 V | 3 W | 90 °C | -40 C | 21.6 V | 1 |
Recom Power | Isolated Module | 250 mA | 12 V | Through Hole | ITE (Commercial) | 3000 V | 0.48 " | 0.3 " | 12.2 mm | 0.77 in | 7.5 mm | 19.6 mm | 90 % | 7-SIP Module 4 Leads | 26.4 V | 3 W | 90 °C | -40 C | 21.6 V | 1 |
 Recom Power | Isolated Module | 600 mA | 5 V | Through Hole | ITE (Commercial) | 3000 V | 0.48 " | 0.3 " | 12.2 mm | 0.77 in | 7.5 mm | 19.6 mm | 85 % | 7-SIP Module 4 Leads | 5.5 V | 3 W | 90 °C | -40 C | 4.5 V | 1 |
Recom Power | Isolated Module | 600 mA | 5 V | Through Hole | ITE (Commercial) | 4000 V | 0.48 " | 0.3 " | 12.2 mm | 0.77 in | 7.5 mm | 19.6 mm | 84 % | 7-SIP Module 4 Leads | 13.2 V | 3 W | 90 °C | -40 C | 10.8 V | 1 |
Recom Power | Isolated Module | 600 mA | 5 V | Through Hole | ITE (Commercial) | 4000 V | 0.48 " | 0.3 " | 12.2 mm | 0.77 in | 7.5 mm | 19.6 mm | 85 % | 7-SIP Module 4 Leads | 5.5 V | 3 W | 90 °C | -40 C | 4.5 V | 1 |
Recom Power | Isolated Module | 600 mA | 5 V | Through Hole | ITE (Commercial) | 4000 V | 0.48 " | 0.3 " | 12.2 mm | 0.77 in | 7.5 mm | 19.6 mm | 86 % | 7-SIP Module 4 Leads | 26.4 V | 3 W | 90 °C | -40 C | 21.6 V | 1 |
