N2530 Series

Catalog

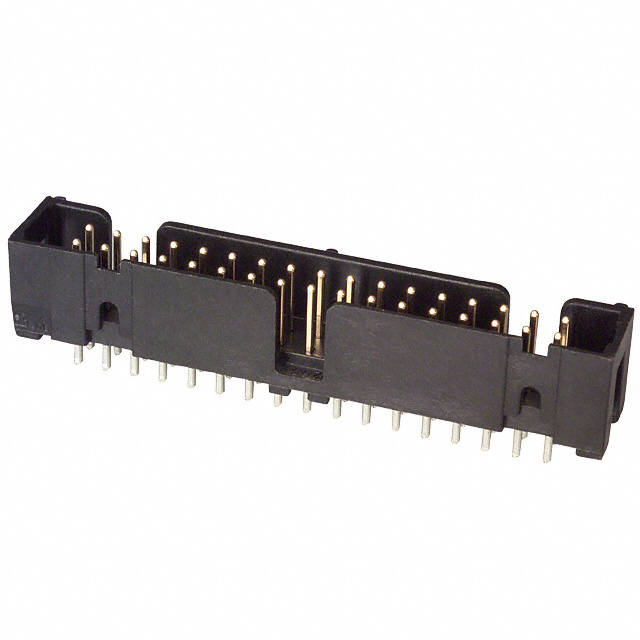

CONN HEADER VERT 30POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Number of Positions	Insulation Color	Contact Length - Post	Contact Length - Post	Mounting Type	Style	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Pitch - Mating	Pitch - Mating	Features	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Positions Loaded	Connector Type	Contact Material	Contact Finish - Post	Contact Finish - Mating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Shrouding	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]
3M Electronic Specialty N2530-6003-RB	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30	Black	3.94 mm	0.155 "	Through Hole	Board to Board Cable	0.39 in	9.91 mm	UL94 V-0	-55 C	105 ░C	Square	0.1 "	2.54 mm	Keying Slot	Push-Pull	0.1 in	2.54 mm	Solder	All	Header	Copper Alloy	Tin	Gold	Male Pin	0.76 Ám	30 Áin	2	Shrouded - 4 Wall	1.75 A
3M Electronic Specialty N2530-6003-UB	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30	Black	3.94 mm	0.155 "	Through Hole	Board to Board Cable	0.39 in	9.91 mm	UL94 V-0	-55 C	105 ░C	Square	0.1 "	2.54 mm	Keying Slot	Push-Pull	0.1 in	2.54 mm	Solder	All	Header	Copper Alloy	Tin-Lead	Gold	Male Pin	0.76 Ám	30 Áin	2	Shrouded - 4 Wall	1.75 A
3M Electronic Specialty N2530-6002-UB	200 µin	5.08 µm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	30	Black			Through Hole	Board to Board Cable	0.39 in	9.91 mm	UL94 V-0	-55 C	105 ░C	Square	0.1 "	2.54 mm	Keying Slot	Push-Pull	0.1 in	2.54 mm	Solder	All	Header	Copper Alloy	Tin-Lead	Gold	Male Pin	0.76 Ám	30 Áin	2	Shrouded - 4 Wall	1.75 A	0.112 in	2.84 mm
3M Electronic Specialty N2530-6V0C-RB-WF	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	30	Black			Surface Mount	Board to Board Cable	0.39 in	9.91 mm	UL94 V-0	-55 C	105 ░C	Square	0.1 "	2.54 mm	Keying Slot Pick and Place	Push-Pull	0.1 in	2.54 mm	Solder	All	Header	Copper Alloy	Tin	Gold	Male Pin	0.76 Ám	30 Áin	2	Shrouded - 4 Wall	1.75 A
