1EDI30 Series
Manufacturer: INFINEON
Beta
⌘K
EICEDRIVER™ 1200 V HIGH-SIDE DRIVER IC WITH TYPICAL 5.9 A SOURCE AND 6.2 A SINK OUTPUT CURRENTS. IT COMES WITH A FUNCTIONAL GALVANICALLY ISOLATED PG-DSO-8 PACKAGE AND WORKS WITH IGBTS AND SIC MOSFETS. FEATURES: ACTIVE MILLER CLAMP, SEPARATE PIN FOR LOGIC GROUND
| Part | Mounting Type | Supplier Device Package | Technology | Package / Case | Number of Channels [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Voltage - Output Supply [Max] | Voltage - Output Supply [Min] | Package / Case | Package / Case | Package / Case | Rise / Fall Time (Typ) | Current - Output High, Low [custom] | Current - Output High, Low [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Surface Mount | PG-DSO-8-59 | Magnetic Coupling | 8-SOIC (0.295" 7.50mm Width) | 1 | -40 °C | 150 °C | 9 ns | 10 ns | 18 V | 13 V | ||||||
INFINEON | Surface Mount | PG-DSO-8-51 | Magnetic Coupling | 8-SOIC | 1 | -40 °C | 150 °C | 18 V | 13 V | 0.154 in | 3.9 mm | ||||||

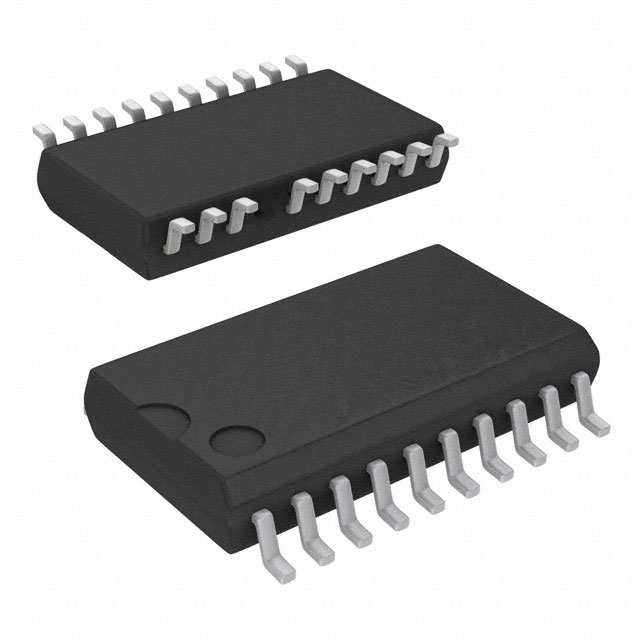

 INFINEON | Surface Mount | PG-DSO-19-4 | Magnetic Coupling | 20-SOIC | 1 | -40 °C | 150 °C | 17.5 V | 4.75 V | 0.295 " 7.5 mm Width 19 Leads | 22 ns 23 ns | 4 A | 4 A |
