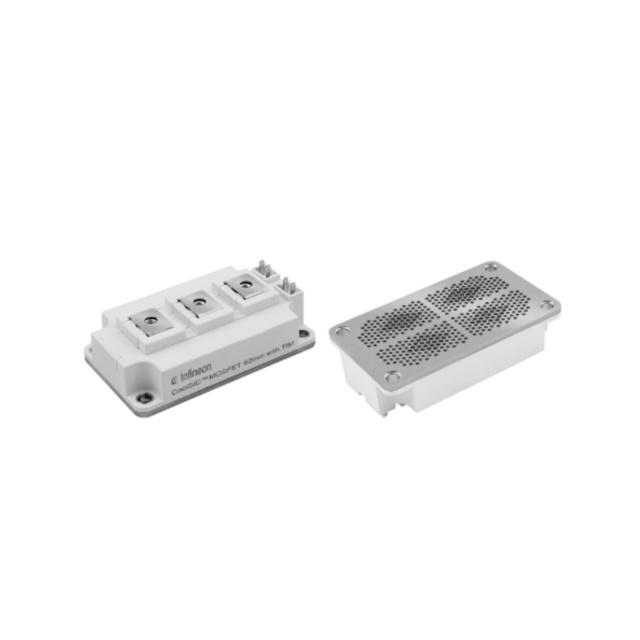

FF2MR12 Series

Manufacturer: INFINEON

Catalog

SIC 2N-CH 1200V 500A AG-62MM

Part	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)	Configuration	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs	Technology	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case
INFINEON FF2MR12KM1PHOSA1	1.2 kV	1200 V	2 N-Channel	39700 pF	5.15 V	1340 nC	Silicon Carbide (SiC)	2.13 mOhm	500 A	Chassis Mount	AG-62MM	-40 °C	150 °C	Module
INFINEON FF2MR12KM1HOSA1	1.2 kV	1200 V	2 N-Channel	39700 pF	5.15 V	1340 nC	Silicon Carbide (SiC)	2.13 mOhm	500 A	Chassis Mount	AG-62MM	-40 °C	150 °C	Module
