SWT3 Series
Manufacturer: TT Electronics/BI
Beta
⌘K

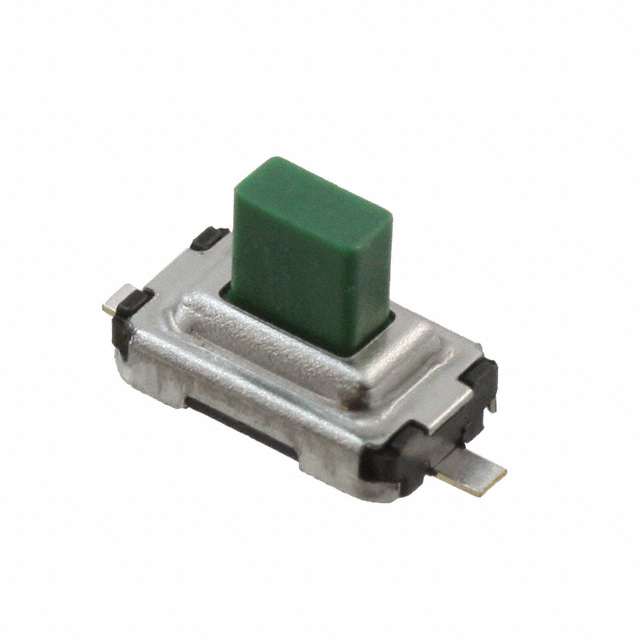

SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Actuator Height off PCB, Vertical [z] | Operating Force | Switch Function | Termination Style | Mounting Type | Contact Rating @ Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Outline [x] | Outline [y] | Illumination | Circuit | Actuator Type | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 50000 Cycles | 4.3 mm | 160 gf | Off-Mom | Gull Wing | Surface Mount | 0.05 A 12 VDC | -20 ░C | 70 °C | 6 mm | 3.5 mm | Non-Illuminated | SPST-NO | Rectangular Button | Top Actuated |
