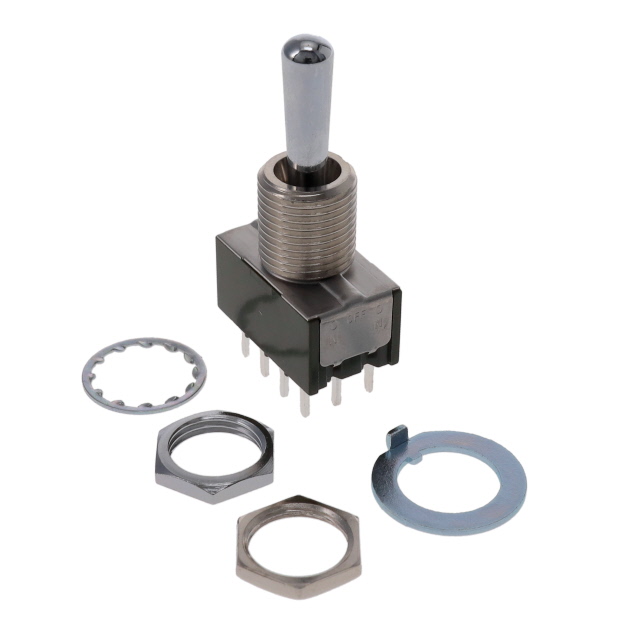

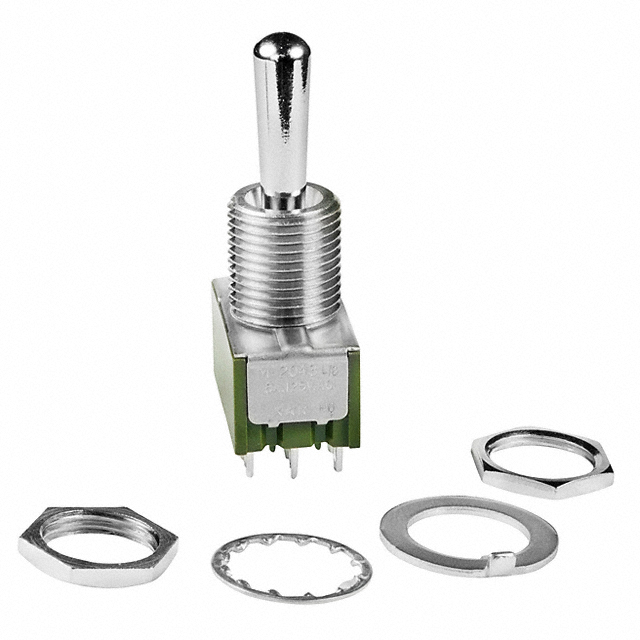

M2043B2 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE 4PDT 6A 125V
| Part | Electrical Life | Actuator Material | Bushing Thread | Voltage Rating - DC | Voltage Rating - AC | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Circuit | Illumination | Actuator Length [x] | Panel Cutout Dimensions [diameter] | Actuator Type | Current Rating (Amps) | Features | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | M12 x 1 | 30 V | 125 V | On-Off-On | 85 °C | -30 ░C | Panel Mount | 4PDT | Non-Illuminated | 17.5 mm | 12.5 mm | Standard Round | 3 A 6 A | Epoxy Sealed Terminals | PC Pin |
 NKK Switches | 25000 Steps | Brass Chrome Plated | M12 x 1 | 30 V | 125 V | On-Off-On | 85 °C | -30 ░C | Panel Mount | 4PDT | Non-Illuminated | 17.5 mm | 12.5 mm | Standard Round | 3 A 6 A | Epoxy Sealed Terminals | PC Pin |
