A2S1CSQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 40A 12V
| Part | Coil Power | Coil Resistance | Contact Material | Mounting Type | Must Operate Voltage | Switching Voltage [Max] | Features | Termination Style | Coil Current | Must Release Voltage | Release Time | Coil Voltage | Contact Rating (Current) | Coil Type | Contact Form | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

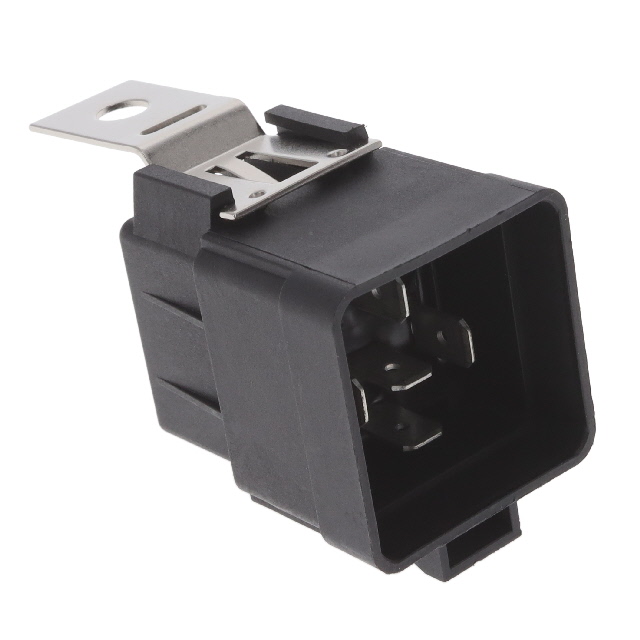

 CIT Relay and Switch | 1.6 W | 90 Ohms | Silver Tin Oxide (AgSnO) | Chassis Mount | 8.4 VDC | 75 VDC | Resistor Sealed - Fully | Quick Connect - 0.250" (6.3mm) | 133.3 mA | 1.2 VDC | 5 ms | 12 VDC | 40 A | Non Latching | SPDT (1 Form C) | 7 ms | 125 °C | -40 C |

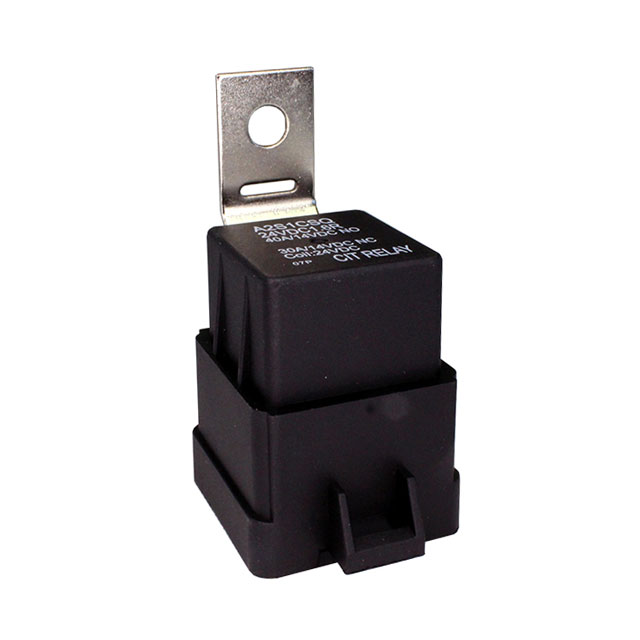

 CIT Relay and Switch | 1.6 W | 360 Ohms | Silver Tin Oxide (AgSnO) | Chassis Mount | 16.8 VDC | 75 VDC | Resistor Sealed - Fully | Quick Connect - 0.250" (6.3mm) | 66.7 mA | 2.4 VDC | 5 ms | 24 VDC | 40 A | Non Latching | SPDT (1 Form C) | 7 ms | 125 °C | -40 C |

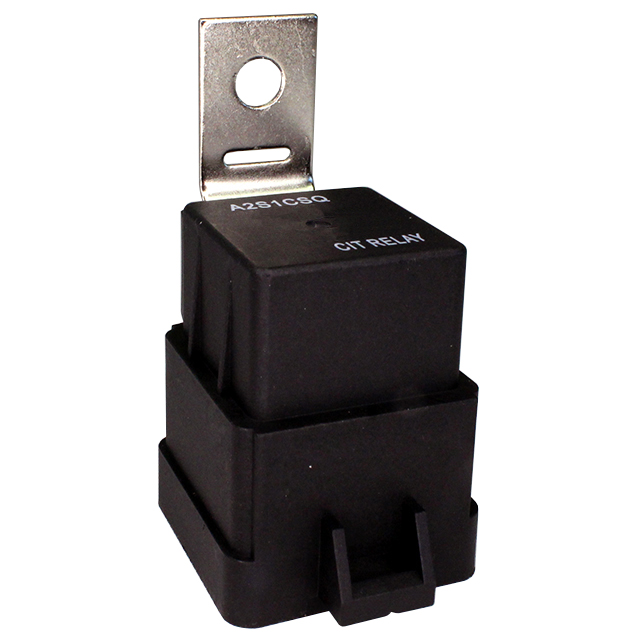

 CIT Relay and Switch | 1.6 W | 360 Ohms | Silver Tin Oxide (AgSnO) | Chassis Mount | 16.8 VDC | 75 VDC | Sealed - Fully | Quick Connect - 0.250" (6.3mm) | 66.7 mA | 2.4 VDC | 5 ms | 24 VDC | 40 A | Non Latching | SPDT (1 Form C) | 7 ms | 125 °C | -40 C |
