IPD530 Series
Manufacturer: INFINEON
Beta
⌘K

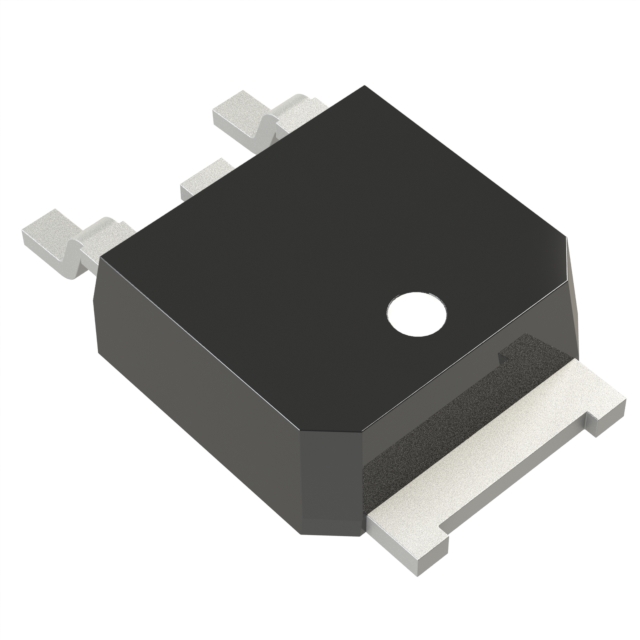

POWER MOSFET, N CHANNEL, 150 V, 21 A, 0.044 OHM, TO-252 (DPAK), SURFACE MOUNT
| Part | Power Dissipation (Max) | Current - Continuous Drain (Id) @ 25°C | Mounting Type | Package / Case | Vgs(th) (Max) @ Id [Max] | Rds On (Max) @ Id, Vgs | FET Type | Input Capacitance (Ciss) (Max) @ Vds [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Drive Voltage (Max Rds On, Min Rds On) | Supplier Device Package | Vgs (Max) | Drain to Source Voltage (Vdss) | Technology | Gate Charge (Qg) (Max) @ Vgs [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 68 W | 21 A | Surface Mount | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 4 V | 53 mOhm | N-Channel | 887 pF | 175 °C | -55 °C | 8 V 10 V | PG-TO252-3 | 20 V | 150 V | MOSFET (Metal Oxide) | 12 nC |
