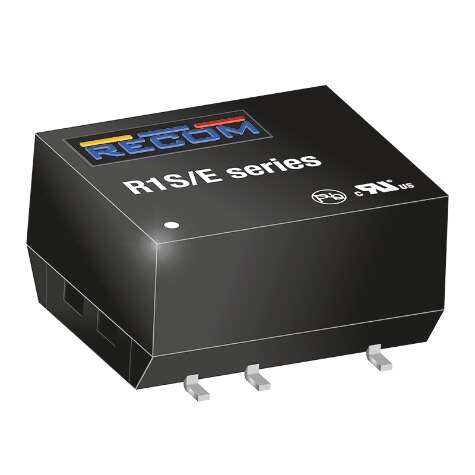

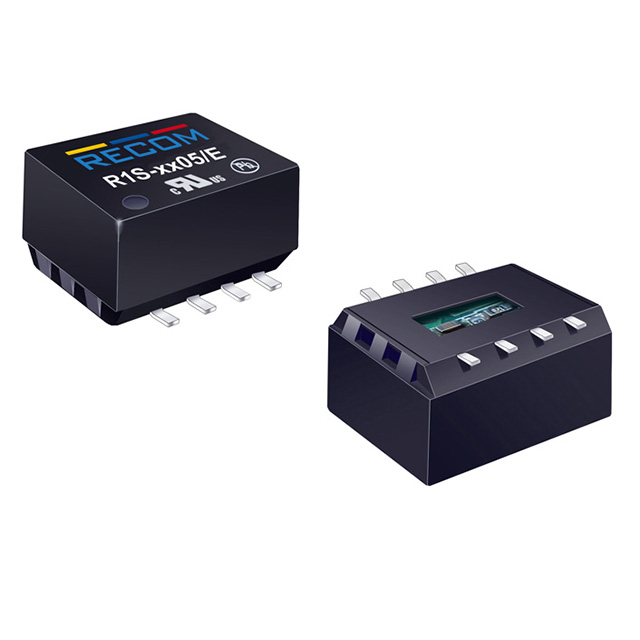

R1S/E Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - SMD 1W 3.3VIN 05VOUT CONV DC/DC
| Part | Efficiency | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Voltage - Isolation | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Number of Outputs | Voltage - Output 1 | Features | Type | Voltage - Input (Min) [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 80 % | Surface Mount | -40 C | 100 °C | ITE (Commercial) | 1000 V | 200 mA | 3.63 V | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 1 | 5 V | SCP | Isolated Module | 2.97 V | 8-SMD Module 5 Leads |
Recom Power | 80 % | Surface Mount | -40 C | 100 °C | ITE (Commercial) | 1000 V | 200 mA | 3.63 V | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 1 | 5 V | SCP | Isolated Module | 2.97 V | 8-SMD Module |
Recom Power | 80 % | Surface Mount | -40 C | 100 °C | ITE (Commercial) | 1000 V | 200 mA | 3.63 V | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 1 | 5 V | SCP | Isolated Module | 2.97 V | 8-SMD Module 5 Leads |
 Recom Power | 80 % | Surface Mount | -40 C | 100 °C | ITE (Commercial) | 1000 V | 200 mA | 3.63 V | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 1 | 5 V | SCP | Isolated Module | 2.97 V | 8-SMD Module |
Recom Power | 80 % | Surface Mount | -40 C | 100 °C | ITE (Commercial) | 2000 V | 200 mA | 26.4 V | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 1 | 5 V | SCP | Isolated Module | 21.6 V | 8-SMD Module 5 Leads |
Recom Power | 80 % | Surface Mount | -40 C | 100 °C | ITE (Commercial) | 2000 V | 200 mA | 26.4 V | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 1 | 5 V | SCP | Isolated Module | 21.6 V | 8-SMD Module 5 Leads |
 Recom Power | 80 % | Surface Mount | -40 C | 100 °C | ITE (Commercial) | 2000 V | 200 mA | 3.63 V | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 1 | 5 V | SCP | Isolated Module | 2.97 V | 8-SMD Module 5 Leads |
Recom Power | 80 % | Surface Mount | -40 C | 100 °C | ITE (Commercial) | 2000 V | 200 mA | 5.5 V | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 1 | 5 V | SCP | Isolated Module | 4.5 V | 8-SMD Module 5 Leads |
Recom Power | 80 % | Surface Mount | -40 C | 100 °C | ITE (Commercial) | 2000 V | 200 mA | 3.63 V | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 1 | 5 V | SCP | Isolated Module | 2.97 V | 8-SMD Module 5 Leads |
Recom Power | 80 % | Surface Mount | -40 C | 100 °C | ITE (Commercial) | 2000 V | 200 mA | 26.4 V | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 1 | 5 V | SCP | Isolated Module | 21.6 V | 8-SMD Module 5 Leads |
