IRS2334 Series
Manufacturer: INFINEON
Beta
⌘K
EICEDRIVER™ 600 V THREE PHASE DRIVER IC WITH TYPICAL 0.2 A SOURCE AND 0.35 A SINK OUTPUT CURRENTS. IT COMES WITH A FUNCTIONAL LEVELSHIFT MLPQ 5X5 28L PACKAGE AND WORKS WITH IGBTS. FEATURES: SHOOT THROUGH PROTECTION
| Part | Gate Type | Channel Type | Driven Configuration | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | High Side Voltage - Max (Bootstrap) [Max] | Mounting Type | Supplier Device Package | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Input Type | Number of Drivers | Logic Voltage - VIL, VIH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

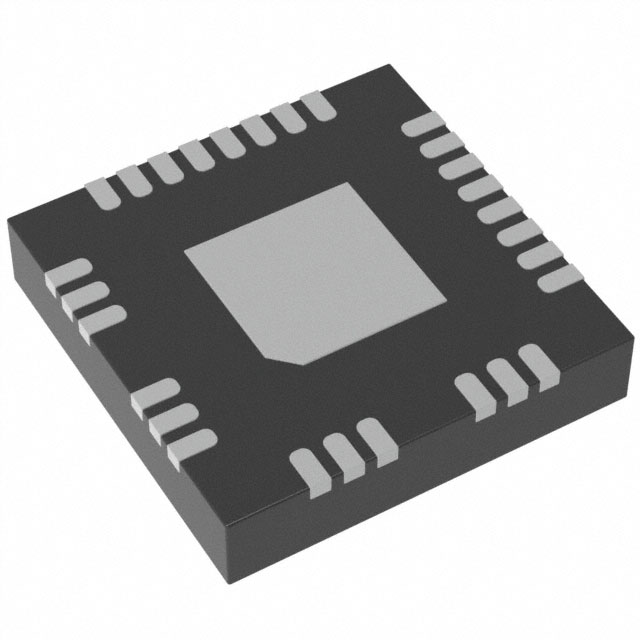

 INFINEON | IGBT MOSFET (N-Channel) N-Channel MOSFET | 3-Phase | Half-Bridge | 125 ns | 50 ns | 600 V | Surface Mount | 28-MLPQ (5x5) | 28-VFQFN Exposed Pad | 20 V | 10 VDC | -40 °C | 150 °C | Non-Inverting | 6 | 0.8 V 2.5 V |
 INFINEON | IGBT MOSFET (N-Channel) N-Channel MOSFET | 3-Phase | Half-Bridge | 125 ns | 50 ns | 600 V | Surface Mount | 20-SOIC | 20-SOIC (0.295" 7.50mm Width) | 20 V | 10 VDC | -40 °C | 150 °C | Non-Inverting | 6 | 0.8 V 2.5 V |
