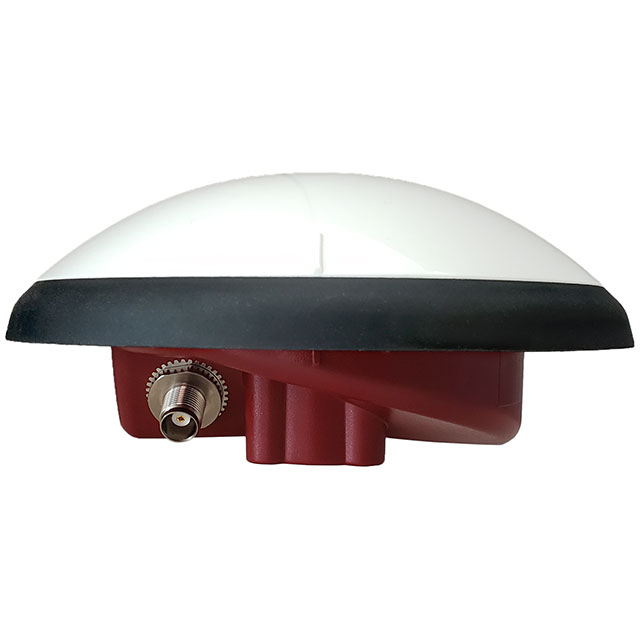

33-VSP6337 Series
Manufacturer: Tallysman
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
TRIPLE BAND (L1/L2/L5)
| Part | Ingress Protection | Frequency Group Minimum (UHF) | Frequency Group | Frequency Group Maximum (UHF) | Height (Max) | Antenna Type | Frequency Range (Band 3) Minimum | Frequency Range (Band 3) Maximum | Frequency Range (Band 1) Maximum | Frequency Range (Band 2) Maximum | Frequency Range (Band 1) Minimum | Frequency Range (Band 2) Minimum | Termination | VSWR | Gain | Frequency (Center/Band) | Frequency (Center/Band) - 2 | Frequency (Center/Band) - 3 | Frequency (Center/Band) - 1 | Number of Bands | Applications | RF Family/Standard |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tallysman | ||||||||||||||||||||||
Tallysman | IP69K | 1 GHz | UHF | 2 GHz | 2.972 in | Dome | 1.559 GHz | 1.606 GHz | 1.255 GHz | 1.559 GHz | 1.16 GHz | 1.539 GHz | TNC Female | 1.8 | 4 dBic 4.5 dBic | 1.2075GHz 1.549GHz 1.5825GHz | 1.549 GHz | 1.5825 GHz | 1.2075 GHz | 3 | BEIDOU Galileo GLONASS GPS | Navigation |
