EP-SGL-M25 Series

Catalog

CABLE GLAND 13-18.01MM M25

Part	Type	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Ingress Protection	Outside Cable Diameter (Max)	Outside Cable Diameter (Min)
TE Connectivity AMP Connectors EP-SGL-M25-BL-G	Cable Gland	13 mm	0.512 in	Seal	-20 ░C	100 °C	M25x1.5	Black	18.01 mm	0.709 in	0.394 in	10 mm	IP68 - Dust Tight Waterproof
TE Connectivity AMP Connectors EP-SGL-M25-GR-E	Cable Gland		0.433 in	Seal	-20 ░C	100 °C	M25x1.5	Gray		0.669 in	0.315 "	8 mm	IP68 - Dust Tight Waterproof	16.99 mm	11 mm

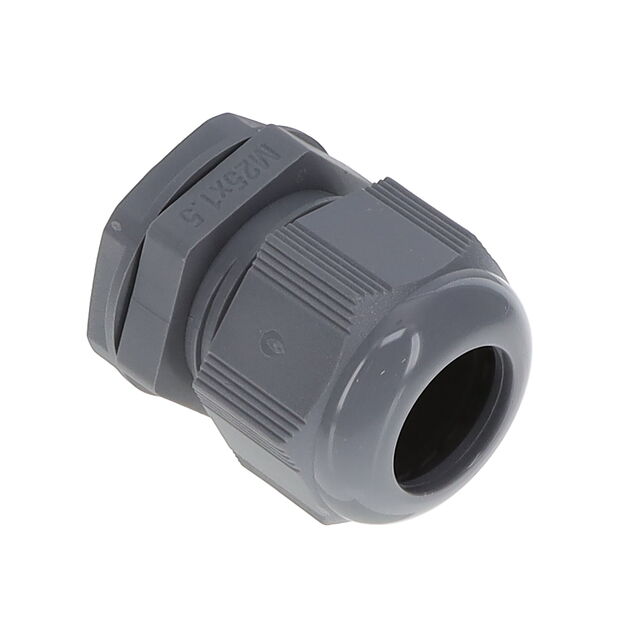

TE Connectivity AMP Connectors EP-SGL-M25-GR-G	Cable Gland	13 mm	0.512 in	Seal	-20 ░C	100 °C	M25x1.5	Gray	18.01 mm	0.709 in	0.394 in	10 mm	IP68 - Dust Tight Waterproof
