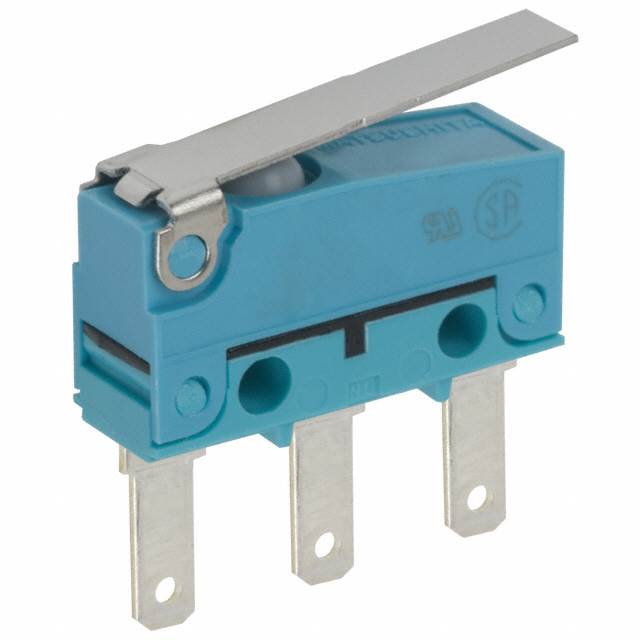

ABS111 Series

Manufacturer: Panasonic Electronic Components

Catalog

MICROSWITCH, SUBMINIATURE, SIMULATED ROLLER LEVER, SPDT, QUICK CONNECT, 2 A, 125 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Switch Function	Mounting Type	Operating Force	Release Force	Pretravel	Pretravel	Termination Style	Voltage Rating - DC	Mechanical Life	Overtravel	Overtravel	Voltage Rating - AC	Electrical Life	Ingress Protection	Actuator Type	Differential Travel	Differential Travel	Operating Position	Operating Position	Circuit	Overtravel [custom]	Overtravel [custom]
Panasonic Electronic Components ABS1114509	85 °C	-40 C	2 A	On-Mom	Chassis Mount	55 gf	3.5 gf	0.11 in	2.8 mm	Quick Connect - 0.110" (2.8mm)	30 V	5000000 Cycles	1.2 mm	0.047 "	125 V	50000 Cycles	IP50 - Dust Protected	Lever Simulated Roller	0.031 in	0.8 mm	0.46 in	11.7 mm	SPDT
Panasonic Electronic Components ABS1114513	85 °C	-40 C	100 mA	On-Mom	Chassis Mount	55 gf	3.5 gf	0.11 in	2.8 mm	Quick Connect - 0.110" (2.8mm)	30 V	5000000 Cycles	1.2 mm	0.047 "	125 V	200000 Cycles	IP50 - Dust Protected	Lever Simulated Roller	0.031 in	0.8 mm	0.46 in	11.7 mm	SPDT

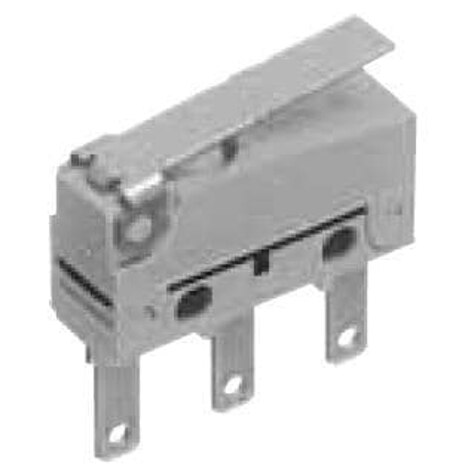

Panasonic Electronic Components ABS1112509	85 °C	-40 C	2 A	On-Mom	Chassis Mount	55 gf	3.5 gf	0.11 in	2.8 mm	Quick Connect - 0.110" (2.8mm)	30 V	5000000 Cycles	1.2 mm	0.047 "	125 V	50000 Cycles	IP50 - Dust Protected	Lever Straight	0.031 in	0.8 mm	0.345 in	8.8 mm	SPDT
Panasonic Electronic Components ABS1112503	85 °C	-40 C	2 A	On-Mom	Chassis Mount	55 gf	3.5 gf	0.11 in	2.8 mm	Quick Connect - 0.110" (2.8mm)	30 V	5000000 Cycles	1.2 mm	0.047 "	125 V	50000 Cycles	IP50 - Dust Protected	Lever Straight	0.031 in	0.8 mm	0.345 in	8.8 mm	SPDT
Panasonic Electronic Components ABS1113409	85 °C	-40 C	2 A	On-Mom	Chassis Mount		2.5 gf	0.138 in	3.5 mm	Quick Connect - 0.110" (2.8mm)	30 V	5000000 Cycles			125 V	50000 Cycles	IP50 - Dust Protected	Lever Straight	0.04 in	1 mm	0.345 in	8.8 mm	SPDT	0.062 "	1.6 mm
Panasonic Electronic Components ABS1110409	85 °C	-40 C	2 A	On-Mom	Chassis Mount	100 gf	15 gf	0.024 in	0.6 mm	Quick Connect - 0.110" (2.8mm)	30 V	5000000 Cycles			125 V	50000 Cycles	IP50 - Dust Protected	Round (Pin Plunger)	0.004 in	0.1 mm	0.33 in	8.4 mm	SPDT	0.015 "	0.4 mm

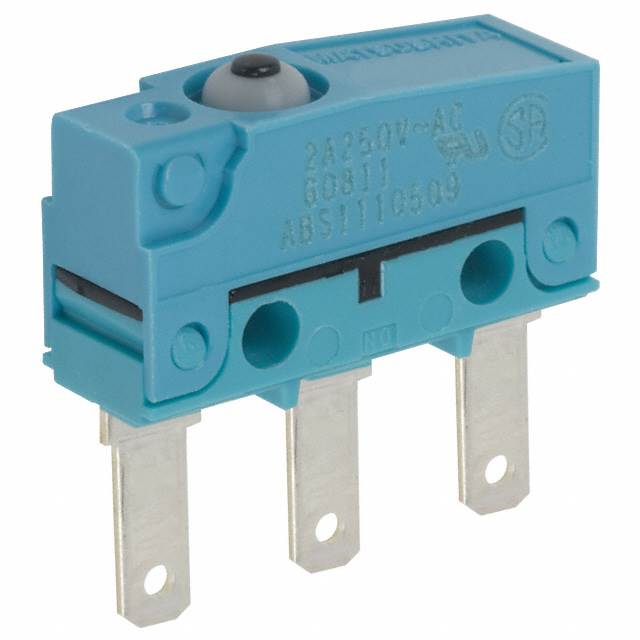

Panasonic Electronic Components ABS1110509	85 °C	-40 C	2 A	On-Mom	Chassis Mount	150 gf	20 gf	0.024 in	0.6 mm	Quick Connect - 0.110" (2.8mm)	30 V	5000000 Cycles			125 V	50000 Cycles	IP50 - Dust Protected	Round (Pin Plunger)	0.004 in	0.1 mm	0.33 in	8.4 mm	SPDT	0.015 "	0.4 mm
Panasonic Electronic Components ABS1114449	85 °C	-40 C	100 mA	On-Mom	Chassis Mount	35 gf	3.059 gf	0.11 in	2.8 mm	Quick Connect - 0.110" (2.8mm)	30 V	5000000 Cycles	1.2 mm	0.047 "		200000 Cycles	IP50 - Dust Protected	Lever Simulated Roller	0.031 in	0.8 mm	0.46 in	11.7 mm	SPDT
Panasonic Electronic Components ABS1110513	85 °C	-40 C	100 mA	On-Mom	Chassis Mount	150 gf	20 gf	0.024 in	0.6 mm	Quick Connect - 0.110" (2.8mm)	30 V	5000000 Cycles			125 V	200000 Cycles	IP50 - Dust Protected	Round (Pin Plunger)	0.004 in	0.1 mm	0.33 in	8.4 mm	SPDT	0.015 "	0.4 mm
Panasonic Electronic Components ABS1112519	85 °C	-40 C	100 mA	On-Mom	Chassis Mount	55 gf	3.5 gf	0.11 in	2.8 mm	Quick Connect - 0.110" (2.8mm)	30 V	5000000 Cycles	1.2 mm	0.047 "	125 V	200000 Cycles	IP50 - Dust Protected	Lever Straight	0.031 in	0.8 mm	0.345 in	8.8 mm	SPDT
