AMP TC-ZIF Series

Catalog

TC ZIF REC ASSEMBLY,KIT

Part	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Pitch	Pitch	Connector Type	Number of Positions Loaded	Termination	Contact Finish	Color	Features	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 6674720-1	0.5 A	UL94 V-0	100 V	-55 C	85 °C	Through Hole	260	0.8 mm	0.031 in	Receptacle Female Sockets	All	Solder	Gold	Black Natural
TE Connectivity AMP Connectors 6565199-2						Board Edge Straddle Mount	260	0.8 mm	0.031 in	Header	All	Solder	Gold	Black Natural

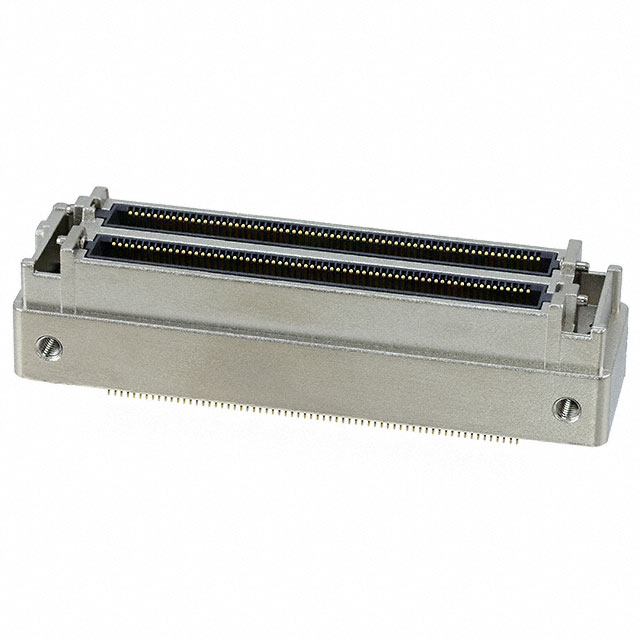

TE Connectivity AMP Connectors 6565199-1	0.5 A	UL94 V-0	100 V	-50 °C	85 °C	Board Edge Straddle Mount	260	0.8 mm	0.031 in	Header	All	Solder	Gold	Black Natural

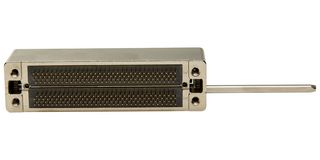

TE Connectivity AMP Connectors 6565204-1		UL94 V-0		-55 C	85 °C	Through Hole	260	0.8 mm	0.031 in	Receptacle Female Sockets	All	Solder	Gold		Actuating Camshaft	0.025 µm	1 µin
