ED951 Series

Catalog

TERM BLOCK PLUG 3POS STR 5MM

Part	Contact Material	Housing Material	Material Flammability Rating	Screw Size	Wire Strip Length	Insulation Height [custom]	Insulation Height [custom]	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Plug Wire Entry	Positions Per Level	Wire Gauge or Range - mm²	Pitch	Pitch	Features	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - UL	Number of Levels	Mounting Type	Termination Style	Type	Number of Positions	Wire Gauge or Range - mm˛
On Shore Technology Inc. ED951/3	Copper	Polyamide (PA) Nylon	UL94 V-0	M3	6 mm	0.591 in	15 mm	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	180 °	3	2.5 mm²	0.197 in	5 mm	Mating Flange Retention Latches (Non-Wire Side)	Green	22 AWG	12 AWG	300 V	1	Free Hanging (In-Line)	Screw	Plug Female Sockets

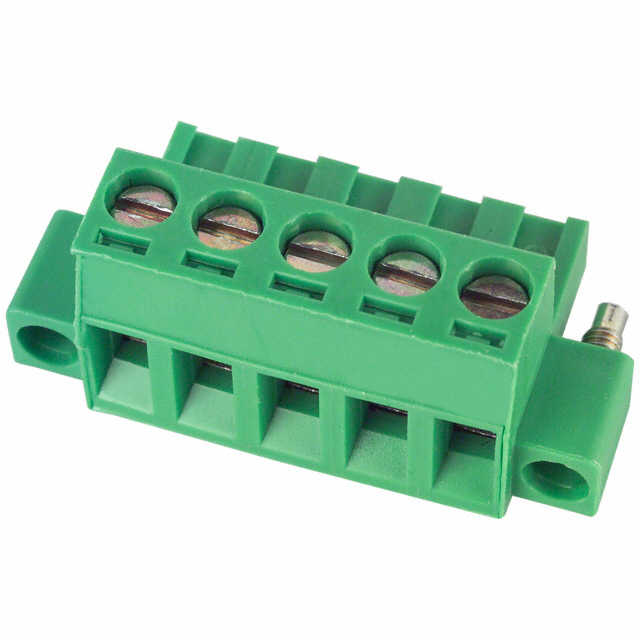

On Shore Technology Inc. ED951/5	Copper	Polyamide (PA) Nylon	UL94 V-0	M3	6 mm	0.591 in	15 mm	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	180 °	5	2.5 mm²	0.197 in	5 mm	Mating Flange Retention Latches (Non-Wire Side)	Green	22 AWG	12 AWG	300 V	1	Free Hanging (In-Line)	Screw	Plug Female Sockets	5
On Shore Technology Inc. ED951/4	Copper	Polyamide (PA) Nylon	UL94 V-0	M3	6 mm	0.591 in	15 mm	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	180 °	4	2.5 mm²	0.197 in	5 mm	Mating Flange Retention Latches (Non-Wire Side)	Green	22 AWG	12 AWG	300 V	1	Free Hanging (In-Line)	Screw	Plug Female Sockets	4

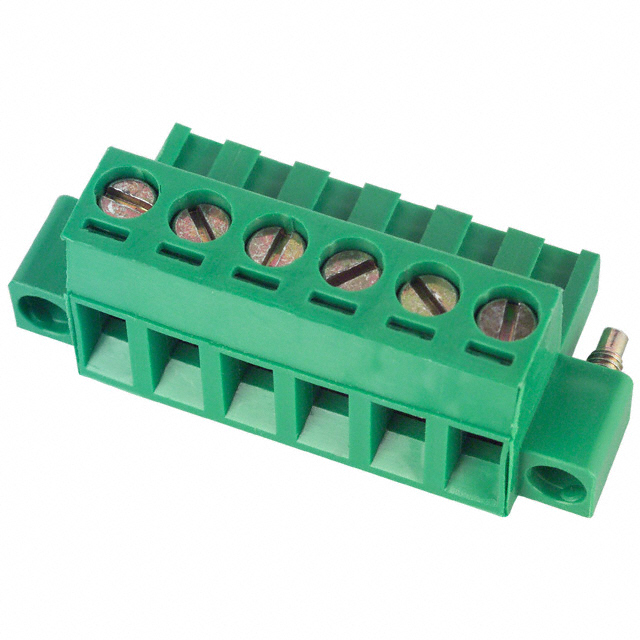

On Shore Technology Inc. ED951/6	Copper	Polyamide (PA) Nylon	UL94 V-0	M3	6 mm	0.591 in	15 mm	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	180 °	6	2.5 mm²	0.197 in	5 mm	Mating Flange Retention Latches (Non-Wire Side)	Green	22 AWG	12 AWG	300 V	1	Free Hanging (In-Line)	Screw	Plug Female Sockets	6

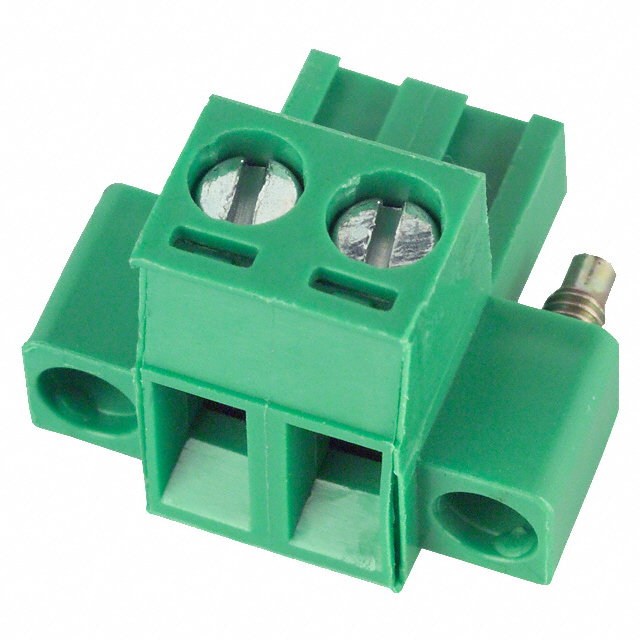

On Shore Technology Inc. ED951/2	Copper	Polyamide (PA) Nylon	UL94 V-0	M3	6 mm	0.591 in	15 mm	4.4 Lb-In	0.5 Nm	-30 ░C	105 ░C	180 °	2	2.5 mm²	0.197 in	5 mm	Mating Flange Retention Latches (Non-Wire Side)	Green	22 AWG	12 AWG	300 V	1	Free Hanging (In-Line)	Screw	Plug Female Sockets	2	2.5 mm˛
