CM Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 22UF 20% 10V

Part	Tolerance	Mounting Type	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Capacitance	Temperature Coefficient	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Rated	Size / Dimension [y]	Height (Max) [Max] [z]	Height (Max) [z]	Current	DC Resistance (DCR) (Max) [Max]	Thickness (Max) [Max] [z]	Thickness (Max)	Height (Max) [Max] [z]

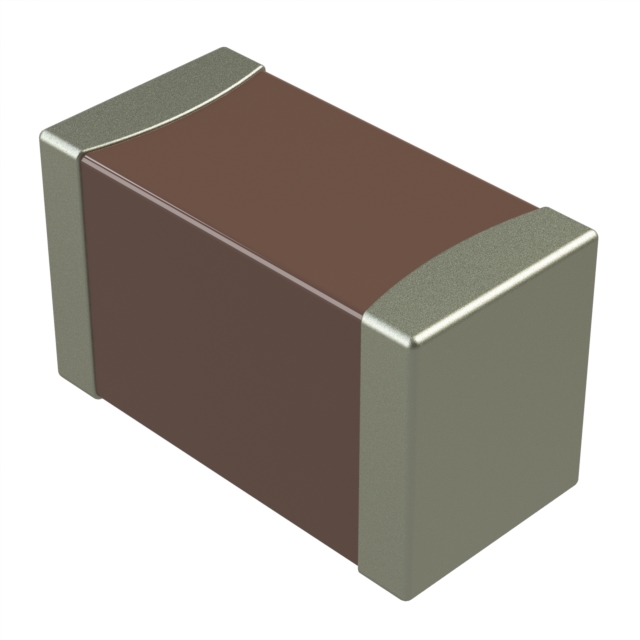

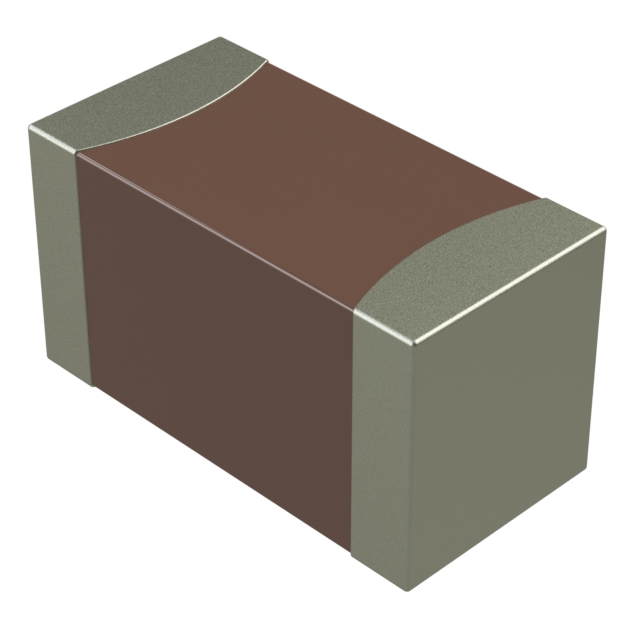

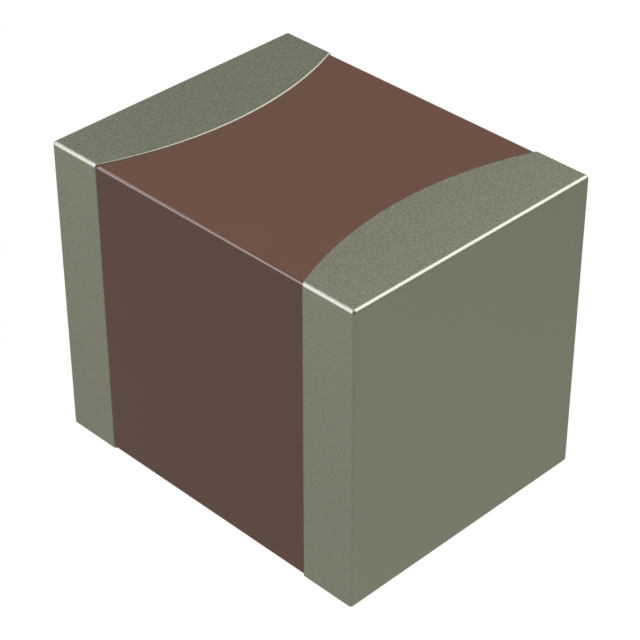

KYOCERA AVX CM32X5R226M10AT	20 %	MLCC Surface Mount	General Purpose	2.5 mm	0.098 in	3.2 mm	0.126 "	-55 C	85 °C	1210	3225 Metric	22 µF	X5R	0.106 in	2.7 mm	10 V
KYOCERA AVX CM105X6S476M02AT	20 %	MLCC Surface Mount	General Purpose		0.031 in	1.6 mm	0.063 "	-55 C	105 ░C	0603	1608 Metric	47 µF	X6S	0.039 in	1 mm	2.5 V	0.8 mm
KYOCERA AVX KNH05X6S106M02AH	20 %	Surface Mount		0.5 mm	0.02 in	1 mm	0.039 "	-55 C	105 ░C	0402 (1005 Metric) 3 PC Pad		10 µF	X6S			2.5 V		0.028 in	0.7 mm	2 A	30 mOhm
KYOCERA AVX CM105X6S106M06AT	20 %	MLCC Surface Mount	General Purpose		0.031 in	1.6 mm	0.063 "	-55 C	105 ░C	0603	1608 Metric	10 µF	X6S			6.3 VDC	0.8 mm					0.035 in	0.9 mm
KYOCERA AVX CM21X7R105K50AT	10 %	MLCC Surface Mount	General Purpose	0.049 " 1.25 mm		0.079 in 2.01 mm		-55 C	125 °C	0805		1 µF	X7R	0.057 "	1.45 mm	50 VDC
KYOCERA AVX CM316X5R106M10AT	20 %	MLCC Surface Mount	General Purpose	1.6 mm	0.063 "	3.2 mm	0.126 "	-55 C	85 °C	1206 (3216 Metric)		10 µF	X5R			10 V
KYOCERA AVX KNH05X6S435M04AH	20 %	Surface Mount		0.5 mm	0.02 in	1 mm	0.039 "	-55 C	105 ░C	0402 (1005 Metric) 3 PC Pad		4.3 µF	X6S			4 V		0.02 in		2 A	30 mOhm			0.5 mm
