DPUN02 Series

Catalog

DC DC CONVERTER +/-15V 2W

Part	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Type	Number of Outputs	Voltage - Output 2	Applications	Voltage - Input (Max) [Max]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max)	Current - Output (Max)	Efficiency	Mounting Type

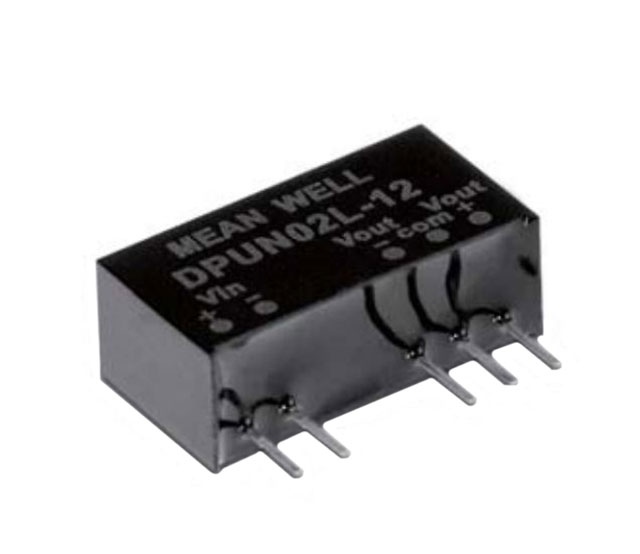

MEAN WELL USA Inc. DPUN02N-15	2 W	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	15 V	Isolated Module	2	-15 V	ITE (Commercial)	26.4 V	CE EAC	105 C	-40 °C	21.6 V	7-SIP Module 5 Leads	67 mA	67 mA	86 %	Through Hole
MEAN WELL USA Inc. DPUN02L-12	2 W	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	12 V	Isolated Module	2	-12 V	ITE (Commercial)	5.5 V	CE EAC	105 C	-40 °C	4.5 V	7-SIP Module 5 Leads	83 mA	83 mA	84 %	Through Hole
MEAN WELL USA Inc. DPUN02M-05	2 W	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	5 V	Isolated Module	2	-5 V	ITE (Commercial)	13.2 V	CE EAC	105 C	-40 °C	10.8 V	7-SIP Module 5 Leads			83 %	Through Hole
MEAN WELL USA Inc. DPUN02M-15	2 W	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	15 V	Isolated Module	2	-15 V	ITE (Commercial)	13.2 V	CE EAC	105 C	-40 °C	10.8 V	7-SIP Module 5 Leads	67 mA	67 mA	87 %	Through Hole
MEAN WELL USA Inc. DPUN02N-05	2 W	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	5 V	Isolated Module	2	-5 V	ITE (Commercial)	26.4 V	CE EAC	105 C	-40 °C	21.6 V	7-SIP Module 5 Leads			81 %	Through Hole
MEAN WELL USA Inc. DPUN02L-15	2 W	0.4 "	0.28 in	10.2 mm	7.2 mm	19.6 mm	0.77 in	15 V	Isolated Module	2	-15 V	ITE (Commercial)	5.5 V	CE EAC	105 C	-40 °C	4.5 V	7-SIP Module 5 Leads	67 mA	67 mA	86 %	Through Hole
