R71VI Series
Manufacturer: KEMET
Beta
⌘K
GENERAL PURPOSE FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 1 ΜF, ± 20%, 250 V, 520 V
| Part | Voltage Rating - AC | Height - Seated (Max) | Height - Seated (Max) [Max] | Capacitance | Tolerance | Lead Spacing | Lead Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Applications | Mounting Type | Dielectric Material | Package / Case | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

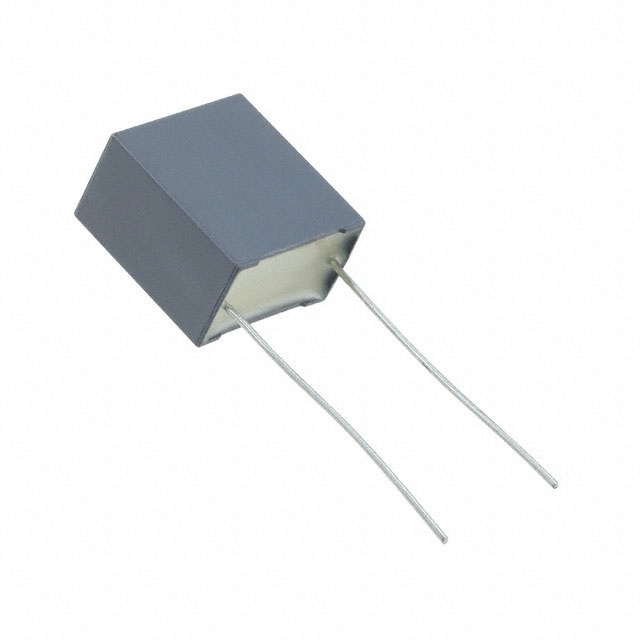

 KEMET | 250 V | 19.1 mm | 0.752 " | 1 µF | 20 % | 15 mm | 0.591 in | -40 C | 110 °C | 520 V | 0.709 in | 0.433 in | 18 mm | 11 mm | DV/DT High Frequency High Pulse Power Factor Correction (PFC) Switching | Through Hole | Polypropylene (PP) Metallized | Radial | PC Pins |

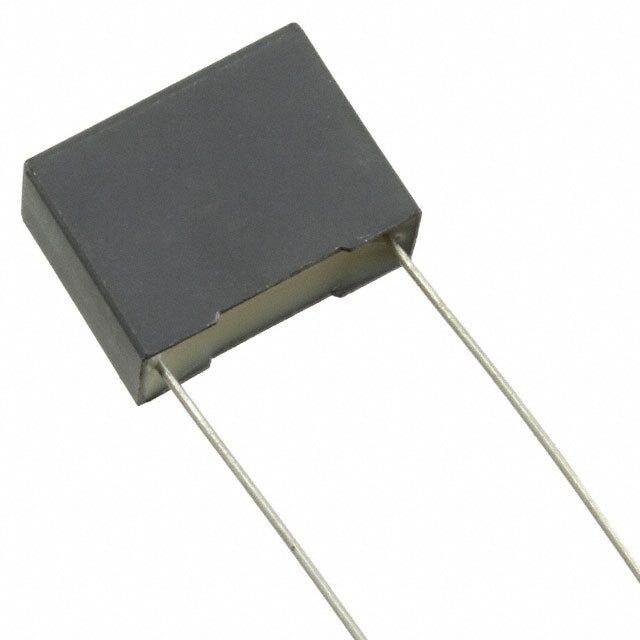

 KEMET | 250 V | 0.33 µF | 10 % | 15 mm | 0.591 in | -40 C | 110 °C | 520 V | 0.709 in | 0.295 in | 18 mm | 7.5 mm | DV/DT High Frequency High Pulse Power Factor Correction (PFC) Switching | Through Hole | Polypropylene (PP) Metallized | Radial | PC Pins |
