RP509Z Series
Manufacturer: Nisshinbo Micro Devices Inc.
Beta
⌘K
SWITCHING VOLTAGE REGULATORS 0.5A/1A 6MHZ PWM/VFM STEP-DOWN DCDC CONVERTER WITH SYNCHRONOUS RECTIFIER
| Part | Supplier Device Package | Mounting Type | Current - Output | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Synchronous Rectifier | Package / Case | Voltage - Input (Min) [Min] | Topology | Number of Outputs | Voltage - Output (Min/Fixed) [Min] | Output Configuration | Frequency - Switching | Function | Voltage - Output (Min/Fixed) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

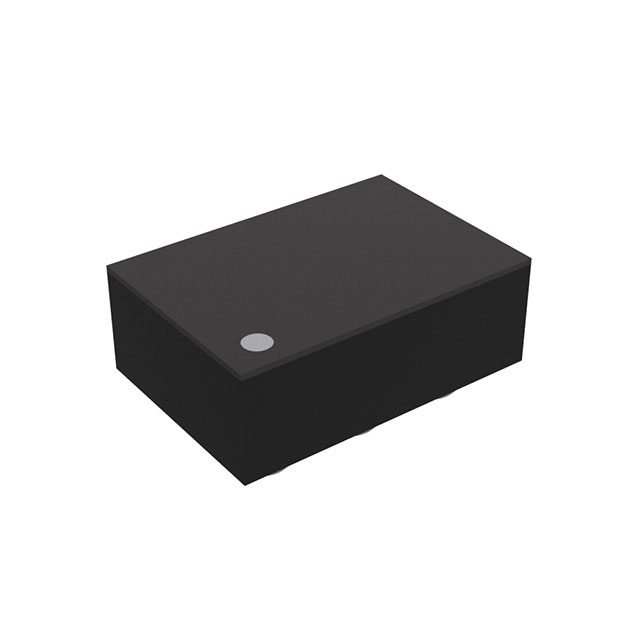

 Nisshinbo Micro Devices Inc. | WLCSP-6-P6 | Surface Mount | 1 A | 5.5 V | 85 C | -40 ¯C | 6-WFBGA WLCSP | 2.3 V | Buck | 1 | 1.3 V | Positive | 6 MHz | Step-Down | ||
 Nisshinbo Micro Devices Inc. | WLCSP-6-P6 | Surface Mount | 1 A | 5.5 V | 85 C | -40 ¯C | 6-WFBGA WLCSP | 2.3 V | Buck | 1 | Positive | 6 MHz | Step-Down | 3 V |
