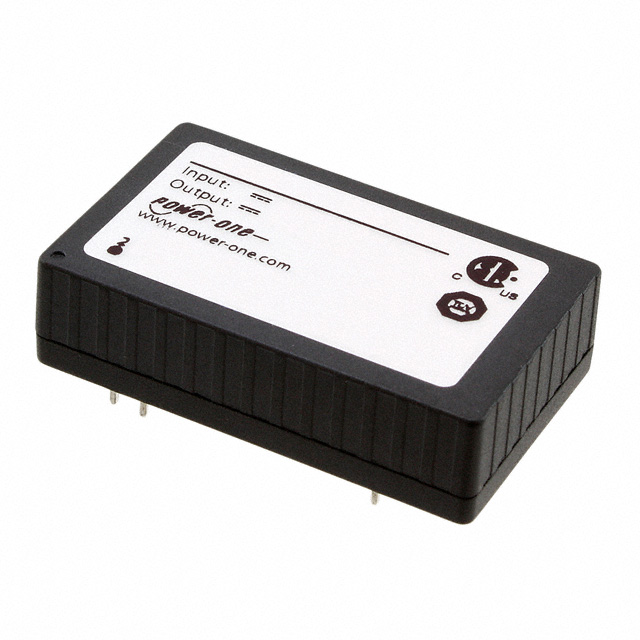

20IMX4 Series

Catalog

DC DC CONVERTER +/-15V 4W

Part	Features	Applications	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output 2	Number of Outputs	Mounting Type	Voltage - Output 1	Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [z]
Bel Fuse Inc. 20IMX4-1515-8G	OCP OTP OVP SCP	ITE (Commercial) Railway	8.4 V	1.5 kV	36 V	24-DIP Module	-15 V	2	Through Hole	15 V	Isolated Module Conformal Coated	85 °C	-40 C	0.34 in	1.3 in	0.79 in	20.1 mm	33 mm	8.6 mm	140 mA	4 W
Bel Fuse Inc. 20IMX4-03-8G	OCP OTP OVP SCP	ITE (Commercial) Railway	8.4 V	1.5 kV	36 V	24-DIP Module		1	Through Hole	3.3 V	Isolated Module Conformal Coated	85 °C	-40 C	0.34 in	1.3 in	0.79 in	20.1 mm	33 mm	8.6 mm		4 W	900 mA	79 %
Bel Fuse Inc. 20IMX4-1212-8	OCP OTP OVP SCP	ITE (Commercial) Railway	8.4 V	1.5 kV	36 V	24-DIP Module	-12 V	2	Through Hole	12 V	Isolated Module Conformal Coated	85 °C	-40 C	0.34 in	1.3 in	0.79 in	20.1 mm	33 mm	8.6 mm	170 mA	4 W			170 mA
Bel Fuse Inc. 20IMX4-1212-8KG	OCP OTP OVP SCP	ITE (Commercial) Railway	8.4 V	1.5 kV	36 V	24-DIP Module	-12 V	2	Through Hole	12 V	Isolated Module Conformal Coated	85 °C	-40 C	0.34 in	1.3 in	0.79 in	20.1 mm	33 mm	8.6 mm	170 mA	4 W			170 mA
Bel Fuse Inc. 20IMX4-2424-8G	OCP OTP OVP SCP	ITE (Commercial) Railway	8.4 V	2000 V	36 V	24-DIP Module 13 Leads	-24 V	2	Through Hole	24 V	Isolated Module Conformal Coated	85 °C	-40 C	0.33 in	1.3 in	0.79 in		33 mm			3.8 W	80 mA	83 %		20.1 mm	8.4 mm
Bel Fuse Inc. 20IMX4-1515-8	OCP OTP OVP SCP	ITE (Commercial) Railway	8.4 V	1.5 kV	36 V	24-DIP Module	-15 V	2	Through Hole	15 V	Isolated Module Conformal Coated	85 °C	-40 C	0.34 in	1.3 in	0.79 in	20.1 mm	33 mm	8.6 mm	140 mA	4 W
Bel Fuse Inc. 20IMX4-05-8KG	OTP OVP SCP	ITE (Commercial) Railway	8.4 V	1.2 kV	36 V	24-DIP Module 13 Leads		1	Through Hole	5 V	Isolated Module Conformal Coated	85 °C	-40 C	0.33 in	1.3 in	0.79 in		33 mm			4 W	700 mA	81 %		20.1 mm	8.4 mm
Bel Fuse Inc. 20IMX4-1212-8G	OTP OVP SCP	ITE (Commercial) Railway	8.4 V	1.2 kV	36 V	24-DIP Module 13 Leads	-12 V	2	Through Hole	12 V	Isolated Module Conformal Coated	85 °C	-40 C	0.33 in	1.3 in	0.79 in		33 mm		170 mA	4 W			170 mA	20.1 mm	8.4 mm
Bel Fuse Inc. 20IMX4-05-8	OCP OTP OVP SCP	ITE (Commercial) Railway	8.4 V	1.5 kV	36 V	24-DIP Module		1	Through Hole	5 V	Isolated Module Conformal Coated	85 °C	-40 C	0.34 in	1.3 in	0.79 in	20.1 mm	33 mm	8.6 mm		4 W	700 mA	81 %
