TF800A24 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K

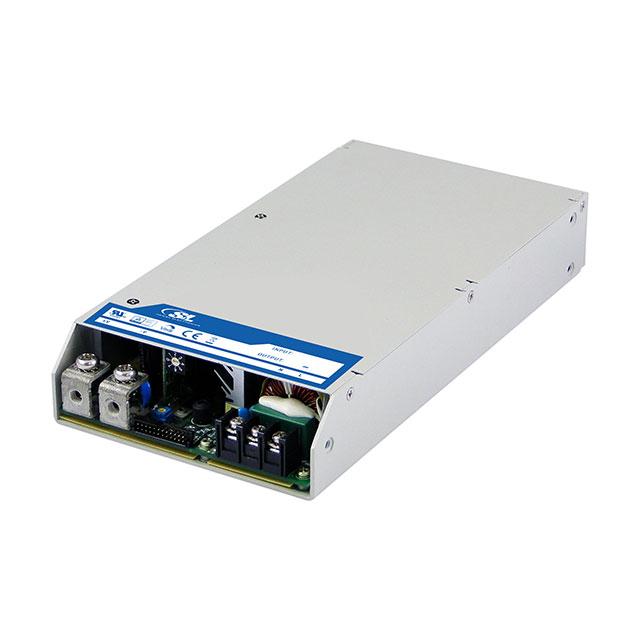

AC/DC POWER SUPPLY SINGLE-OUT 24V 33.5A 800W 12-PIN
| Part | Applications | Current - Output 1 | Efficiency | Number of Outputs | Features | Voltage - Output 1 | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Approval Agency | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | ITE (Commercial) | 33.5 A | 92 % | 1 | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | 24 V | 804 W | 5 in | 248.9 mm | 5 in | 9.8 in | 40.6 mm | 1.6 " | 60 °C | -25 °C | Enclosed | CE cURus TUV | 3000 V | 100 VAC 127 VDC | 240 VAC 370 VDC | Chassis Mount |
