1577634 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

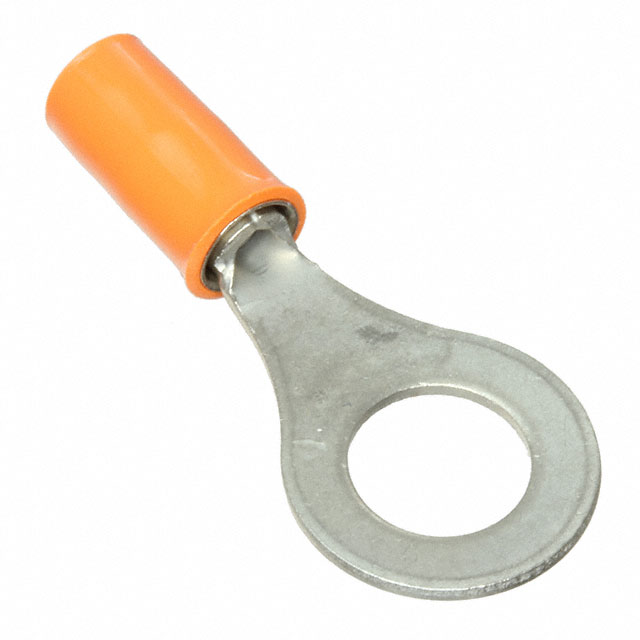

TERMINAL RT PIDG PEEK STRATO 18-16 AWG
| Part | Width - Outer Edges [y] | Width - Outer Edges [y] | Termination | Contact Finish | Thickness | Thickness | Contact Material | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation | Material - Insulation | Terminal Type | Features | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 11.91 mm | 0.469 in | Crimp | Nickel | 0.81 mm | 0.032 in | Copper | Free Hanging (In-Line) | 16 AWG | 18 AWG | 1.4 mm | 0.055 " | 2.67 mm | 0.105 " | Insulated | Polyetheretherketone (PEEK) | Circular | Serrated Termination | 28.37 mm | 1.117 " | 0.25 Stud |
