ATS22 Series

Catalog

SOFT STARTER CONTROLLER, 3-PHASE, 210 A, 600 VAC, 117W, IP00, ALTISTART 22 SERIES

Part	Interface	Motor Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Current - Output	Control / Drive Type	Wattage - Load	Voltage - Supply [Max]	Voltage - Supply [Min]	For Use With/Related Products

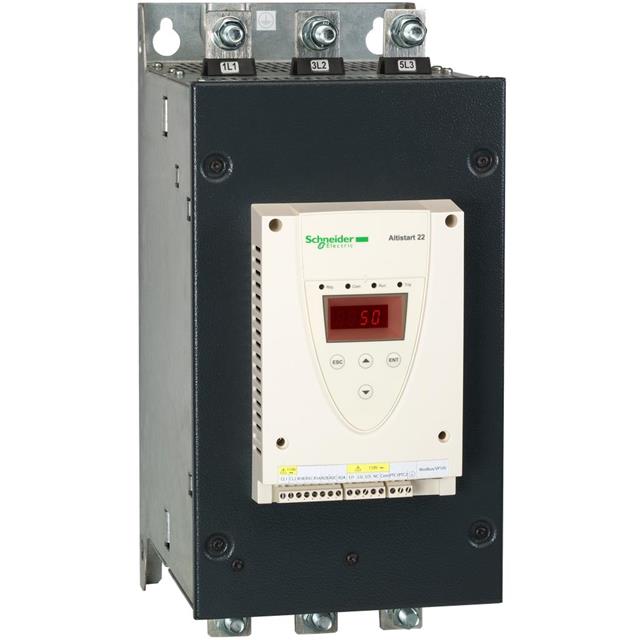

SCHNEIDER ELECTRIC ATS22C21S6U	RS-485 Serial	AC Motor	Module	-10 °C	60 °C	600 V	208 V	Chassis Mount	210 A	Soft Start / Stop	149.14 kW	660 V	177 V
SCHNEIDER ELECTRIC ATS22D32S6	RS-485	AC Motor	Module	-10 °C	60 °C	600 V	230 V	Chassis Mount	27 A	Motor Starter	18.5 kW	660 VAC	195 VAC	Altivar Series
SCHNEIDER ELECTRIC ATS22D88S6U	RS-485 Serial	AC Motor	Module	-10 °C	60 °C	600 V	208 V	Chassis Mount	88 A	Soft Start / Stop	55927 W	660 V	177 V
SCHNEIDER ELECTRIC ATS22C41S6U	RS-485 Serial	AC Motor	Module	-10 °C	60 °C	600 V	208 V	Chassis Mount	410 A	Soft Start / Stop	223710 W	660 V	177 V
