RTHC Series

Catalog

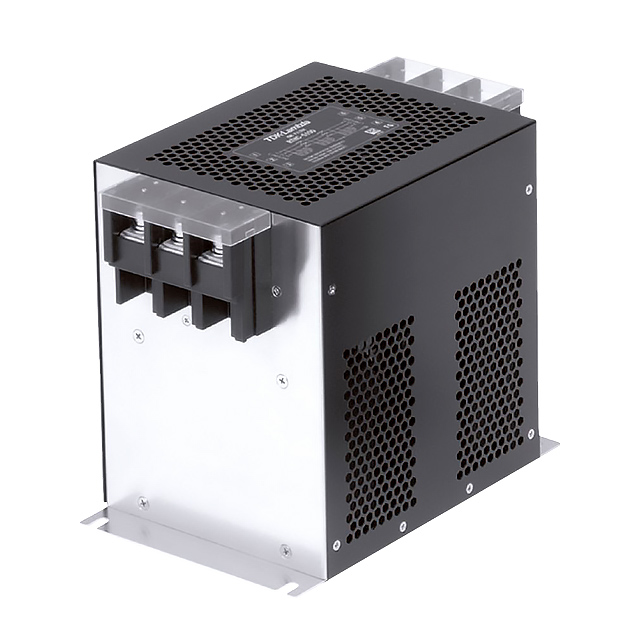

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 6 A, THREE PHASE, 2 STAGE, CHASSIS MOUNT

Part	Mounting Type	Configuration	Termination Style	Approval Agency	Filter Type	Voltage - Rated DC	Current	Applications	Voltage - Rated AC	Operating Temperature [Max]	Operating Temperature [Min]
TDK Corporation RTHC-5006	Chassis Mount	Two Stage	Terminal Block	EN UL	Three Phase (Delta)	500 V	6 A	General Purpose	500 V	85 °C	-25 °C
TDK Corporation RTHC-5060	Chassis Mount	Two Stage	Terminal Block	EN UL	Three Phase (Delta)	500 V	60 A	General Purpose	500 V	85 °C	-25 °C
TDK Corporation RTHC-5150	Chassis Mount	Two Stage	Terminal Block	EN UL	Three Phase (Delta)	500 V	150 A	General Purpose	500 V	85 °C	-25 °C
TDK Corporation RTHC-5200	Chassis Mount	Two Stage	Terminal Block	EN	Three Phase (Delta)	500 V	200 A	General Purpose	500 V	85 °C	-25 °C
TDK Corporation RTHC-5050	Chassis Mount	Two Stage	Terminal Block	EN UL	Three Phase (Delta)	500 V	50 A	General Purpose	500 V	85 °C	-25 °C
TDK Corporation RTHC-5100	Chassis Mount	Two Stage	Terminal Block	EN UL	Three Phase (Delta)	500 V	100 A	General Purpose	500 V	85 °C	-25 °C
