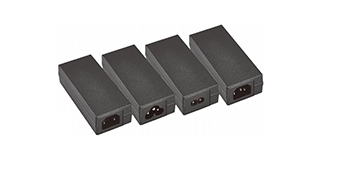

PEAD65 Series

Desktop Power Supply 15V 65W *New Slimline Design*

Manufacturer: TT Electronics/BI

Catalog

Desktop Power Supply 15V 65W *New Slimline Design*

Catalog

Desktop Power Supply 15V 65W *New Slimline Design*

Part	Input Type	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Polarization	Approval Agency	Current - Output (Max) [Max]	Voltage - Output	Region Utilized	Applications	No Load Power Consumption	Standard Number	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Form	Input Connector	Power (Watts)	Output Connector	Output Connector [x]	Output Connector [diameter]	Size / Dimension [z]	Size / Dimension [y]
TT Electronics/BI PEAD65-14-B2	Cord (Sold Separately)	1.5 m	59 in	264 VAC	90 VAC	Positive Center	CB CCC CE cULus PSE UKCA	2.08 A	24 V	International	ITE (Commercial)	150 mW	62368-1	105.4 mm	1.11 in	1.83 in	4.15 in	46.5 mm	28.2 mm	CoC Tier 2 Level VI	0 °C	60 °C	Desktop (Class I)	IEC 320-C14	50 W	Barrel Plug	10 mm	2.5 mm 5.5 mm
TT Electronics/BI PEAD65-12-B2	Cord (Sold Separately)	1.5 m	59 in	264 VAC	90 VAC	Positive Center	CB CCC CE cULus PSE UKCA	4.19 A	12 V	International	ITE (Commercial)	150 mW	62368-1	105.4 mm	1.11 in	1.83 in	4.15 in	46.5 mm	28.2 mm	CoC Tier 2 Level VI	0 °C	60 °C	Desktop (Class I)	IEC 320-C14	50 W	Barrel Plug	10 mm	2.5 mm 5.5 mm
TT Electronics/BI PEAD65SF-13-B2	Cord (Sold Separately)	1.5 m	59 in	264 VAC	90 VAC		CB CCC CE cUL cULus EN PSE RCM UKCA UL	4.33 A	15 V	International	ITE (Commercial)	150 mW	62368-1	105 mm	1.1 in	1.81 in	4.13 in			CoC Tier 2 Level VI	0 °C	60 °C	Desktop (Class II)	IEC 320-C8	65 W	Barrel Plug	10 mm	2.5 mm 5.5 mm	28 mm	46 mm
TT Electronics/BI PEAD65-13-B2	Cord (Sold Separately)	1.5 m	59 in	264 VAC	90 VAC	Positive Center	CB CCC CE cULus PSE UKCA	3.33 A	15 V	International	ITE (Commercial)	150 mW	62368-1	105.4 mm	1.11 in	1.83 in	4.15 in	46.5 mm	28.2 mm	CoC Tier 2 Level VI	0 °C	60 °C	Desktop (Class I)	IEC 320-C14	50 W	Barrel Plug	10 mm	2.5 mm 5.5 mm
TT Electronics/BI PEAD65-18-B2	Cord (Sold Separately)	1.5 m	59 in	264 VAC	90 VAC	Positive Center	CB CCC CE cULus PSE UKCA	1.04 A	48 V	International	ITE (Commercial)	150 mW	62368-1	105.4 mm	1.11 in	1.83 in	4.15 in	46.5 mm	28.2 mm	CoC Tier 2 Level VI	0 °C	60 °C	Desktop (Class I)	IEC 320-C14	50 W	Barrel Plug	10 mm	2.5 mm 5.5 mm
