CRMA Series
Manufacturer: Vishay Dale
Beta
⌘K
THICK FILM RESISTORS - SMD 1WATT 12KOHMS 1% AEC-Q200
| Part | Resistance | Number of Terminations | Temperature Coefficient | Size / Dimension Width | Size / Dimension Length | Power (Watts) | Features | Tolerance | Height - Seated (Max) | Operating Temperature (Max) | Operating Temperature (Min) | Package / Case | Package Name | Composition | Ratings | Power (Watts) Options |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 12 kOhm | 2 | 100 ppm/°C | 0.126 in | 0.25 in | 1 W | Automotive AEC-Q200 High Voltage | 1 % | 0.029 in | 155 °C | -55 °C | 2512 (6332 Metric) | 2512 | Thick Film | ||
 Vishay Dale | 2.7 MOhm | 2 | 100 ppm/°C | 0.063 in | 0.125 in | 300 mW | Automotive AEC-Q200 High Voltage | 1 % | 0.029 in | 155 °C | -55 °C | 1206 (3216 Metric) | 1206 | Thick Film | ||
Vishay Dale | 6.8 kOhm | 2 | 100 ppm/°C | 0.063 in | 0.125 in | 300 mW | Automotive AEC-Q200 High Voltage | 1 % | 0.029 in | 155 °C | -55 °C | 1206 (3216 Metric) | 1206 | Thick Film | ||

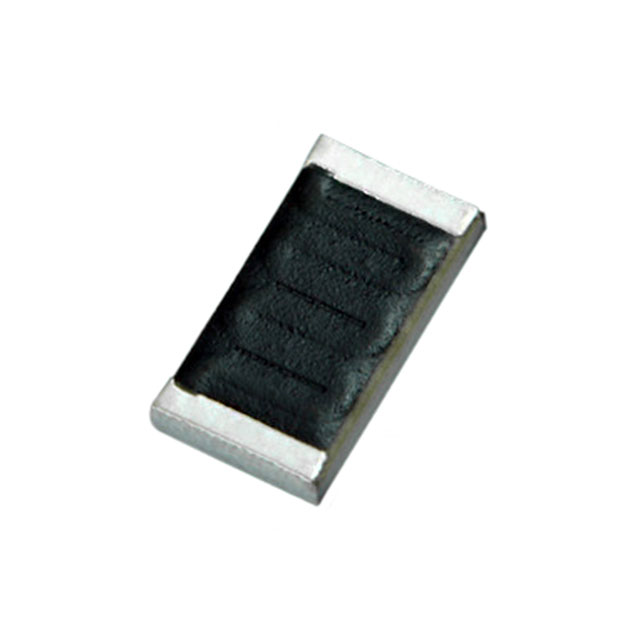

 Vishay Dale | 47 kOhm | 2 | 100 ppm/°C | 0.1 in | 0.2 in | 500 mW | Automotive AEC-Q200 High Voltage | 0.5 % | 0.029 in | 155 °C | -55 °C | 2010 (5025 Metric) | 2010 | Thick Film | AEC-Q200 | 1/2W |
Vishay Dale | 560 Ohm | 2 | 100 ppm/°C | 0.063 in | 0.125 in | 300 mW | Automotive AEC-Q200 High Voltage | 1 % | 0.029 in | 155 °C | -55 °C | 1206 (3216 Metric) | 1206 | Thick Film | ||
Vishay Dale | 20 MOhm | 2 | 100 ppm/°C | 0.126 in | 0.25 in | 1 W | Automotive AEC-Q200 Moisture Resistant | 1 % | 0.029 in | 155 °C | -55 °C | 2512 (6332 Metric) | 2512 | Thick Film | ||
Vishay Dale | 1 kOhm | 2 | 100 ppm/°C | 0.063 in | 0.125 in | 300 mW | Automotive AEC-Q200 High Voltage | 1 % | 0.029 in | 155 °C | -55 °C | 1206 (3216 Metric) | 1206 | Thick Film | ||

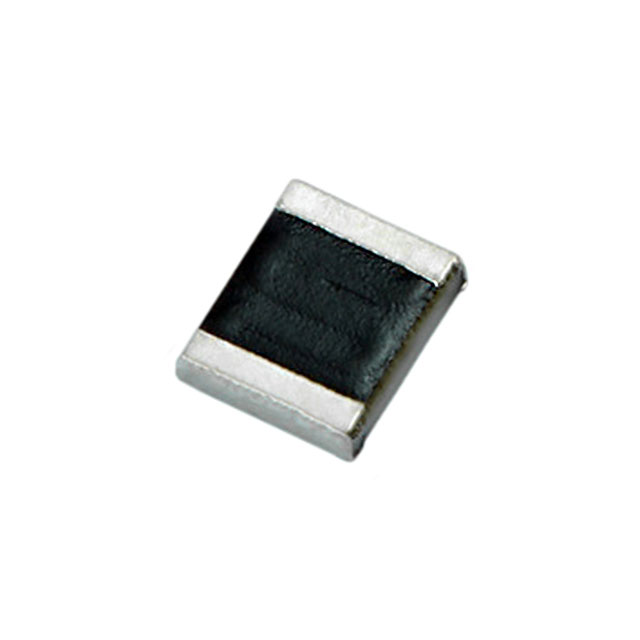

 Vishay Dale | 549 kOhm | 2 | 100 ppm/°C | 0.1 in | 0.125 in | 0.35 W | Automotive AEC-Q200 High Voltage | 0.5 % | 0.029 in | 155 °C | -55 °C | 1210 (3225 Metric) | 1210 | Thick Film | AEC-Q200 | |
 Vishay Dale | 680 Ohm | 2 | 100 ppm/°C | 0.1 in | 0.2 in | 500 mW | Automotive AEC-Q200 High Voltage | 1 % | 0.029 in | 155 °C | -55 °C | 2010 (5025 Metric) | 2010 | Thick Film | 1/2W | |
Vishay Dale | 4.7 kOhm | 2 | 100 ppm/°C | 0.126 in | 0.25 in | 1 W | Automotive AEC-Q200 High Voltage | 1 % | 0.029 in | 155 °C | -55 °C | 2512 (6332 Metric) | 2512 | Thick Film |
