MAX25601 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC LED DRIVER CTRLR PWM 28TSSOP

Part	Voltage - Supply (Max) [Max]	Grade	Voltage - Supply (Min) [Min]	Supplier Device Package	Mounting Type	Frequency [Min]	Frequency [Max]	Type	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Package / Case	Package / Case [custom]	Package / Case [x]	Applications	Qualification	Voltage - Output
Analog Devices Inc./Maxim Integrated MAX25601BAUI/V+T	40 V	Automotive	4.5 V	28-TSSOP-EP	Surface Mount	200 kHz	2.2 MHz	DC DC Controller	Step-Down (Buck) Step-Up (Boost)	125 °C	-40 °C	Analog PWM	2	5.1 V	4.9 V	28-TSSOP Exposed Pad	4.4 mm	0.173 in
Analog Devices Inc./Maxim Integrated MAX25601AUI/V+T	40 V	Automotive	4.5 V	28-TSSOP-EP	Surface Mount	200 kHz	2.2 MHz	DC DC Controller	Step-Down (Buck) Step-Up (Boost)	125 °C	-40 °C	Analog PWM	2	5.1 V	4.9 V	28-TSSOP Exposed Pad	4.4 mm	0.173 in

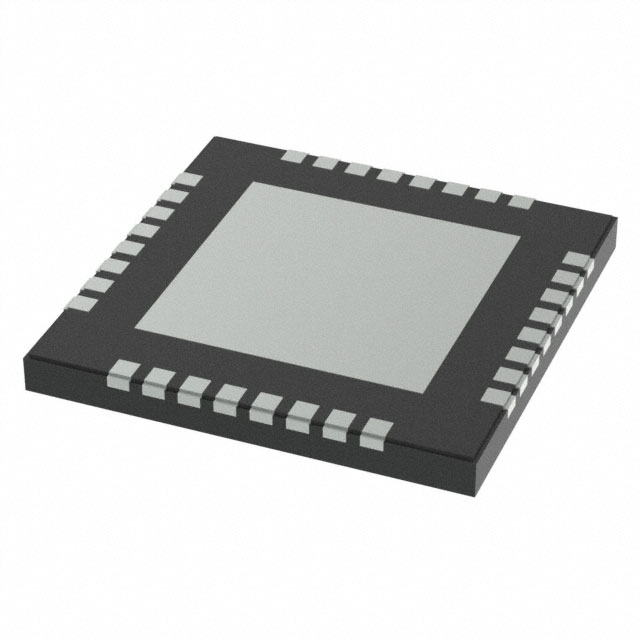

Analog Devices Inc./Maxim Integrated MAX25601ATJE/VY+	40 V	Automotive	4.5 V	32-TQFN-EP (5x5)	Surface Mount Wettable Flank	200 kHz	2.2 MHz	DC DC Controller	Step-Down (Buck) Step-Up (Boost)	125 °C	-40 °C	Analog PWM	2	5.1 V	4.9 V
Analog Devices Inc./Maxim Integrated MAX25601AUI/V+	40 V	Automotive	4.5 V	28-TSSOP-EP	Surface Mount	200 kHz	2.2 MHz	DC DC Controller	Step-Down (Buck) Step-Up (Boost)	125 °C	-40 °C	Analog PWM	2	5.1 V	4.9 V	28-TSSOP Exposed Pad	4.4 mm	0.173 in
Analog Devices Inc./Maxim Integrated MAX25601AUIE/V+T	40 V	Automotive	4.5 V	28-TSSOP-EP	Surface Mount	200 kHz	2.2 MHz	DC DC Controller	Step-Down (Buck) Step-Up (Boost)	125 °C	-40 °C	Analog PWM	2	5.1 V	4.9 V	28-TSSOP Exposed Pad	4.4 mm	0.173 in
Analog Devices Inc./Maxim Integrated MAX25601AUIE/V+	40 V	Automotive	4.5 V	28-TSSOP-EP	Surface Mount	200 kHz	2.2 MHz	DC DC Controller	Step-Down (Buck) Step-Up (Boost)	125 °C	-40 °C	Analog PWM	2	5.1 V	4.9 V	28-TSSOP Exposed Pad	4.4 mm	0.173 in
Analog Devices Inc./Maxim Integrated MAX25601DAUI/V+	48 V	Automotive	5 V	28-TSSOP-EP	Surface Mount	200 kHz	2.2 MHz	DC DC Controller	Step-Down (Buck) Step-Up (Boost)	125 °C	-40 °C	Analog PWM	1	5.1 V	4.9 V	28-TSSOP Exposed Pad	4.4 mm	0.173 in	Architectural Commercial Industrial Lighting	AEC-Q100
Analog Devices Inc./Maxim Integrated MAX25601ATJE/VY+T	40 V	Automotive	4.5 V	32-TQFN-EP (5x5)	Surface Mount Wettable Flank	200 kHz	2.2 MHz	DC DC Controller	Step-Down (Buck) Step-Up (Boost)	125 °C	-40 °C	Analog PWM	2	5.1 V	4.9 V
Analog Devices Inc./Maxim Integrated MAX25601BAUI/V+	40 V	Automotive	4.5 V	28-TSSOP-EP	Surface Mount	200 kHz	2.2 MHz	DC DC Controller	Step-Down (Buck) Step-Up (Boost)	125 °C	-40 °C	Analog PWM	2	5.1 V	4.9 V	28-TSSOP Exposed Pad	4.4 mm	0.173 in
Analog Devices Inc./Maxim Integrated MAX25601AATJ/VY+	40 V	Automotive	4.5 V	32-TQFN-EP (5x5)	Surface Mount Wettable Flank	200 kHz	2.2 MHz	DC DC Controller	Step-Down (Buck) Step-Up (Boost)	125 °C	-40 °C	Analog PWM	4								5 V
