16280-3P Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

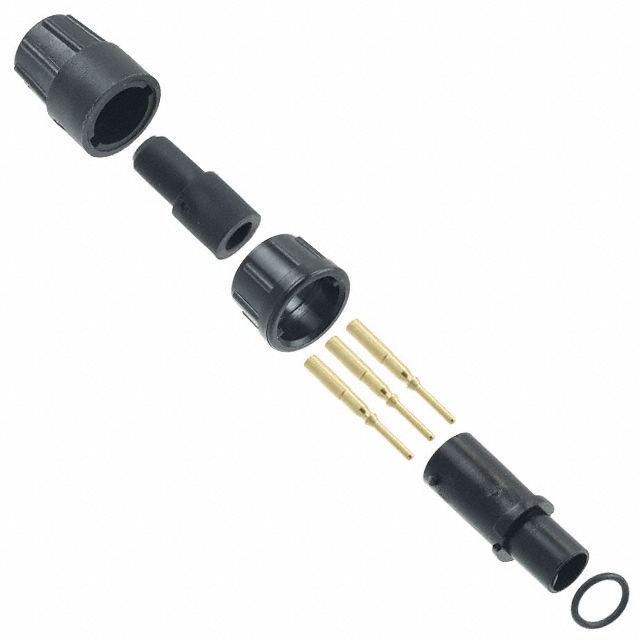

CONN CIRCULAR PIN 3 POS CRIMP ST CABLE MOUNT 3 TERMINAL 1 PORT MAXI-CON-X® BULK
| Part | Applications | Contact Material | Backshell Material, Plating | Primary Material | Connector Type | Color | Material Flammability Rating | Contact Finish - Mating | Fastening Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Orientation | Shielding | Ingress Protection | Voltage Rating | Features | Current Rating (Amps) | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Data Industrial Instrumentation Medical | Copper Alloy | Thermoplastic | Plastic | Plug Male Pins | Black | UL94 HB | Gold | Bayonet Lock | 0.14 in | 2.29 mm | 0.09 in | 3.56 mm | Keyed | Unshielded | IP67 - Dust Tight Waterproof | 600 VAC | Backshell | 7.5 A | Crimp | 85 °C | -40 C | Free Hanging (In-Line) | |
 SWITCHCRAFT/CONXALL | Data Industrial Instrumentation Medical | Copper Alloy | Thermoplastic | Plastic | Plug Male Pins | Black | UL94 HB | Gold | Bayonet Lock | 0.17 in | 3.81 mm | 0.15 " | Keyed | Unshielded | IP67 - Dust Tight Waterproof | 600 VAC | Backshell | 7.5 A | Crimp | 85 °C | -40 C | Free Hanging (In-Line) | 4.32 mm | |
SWITCHCRAFT/CONXALL | Data Industrial Instrumentation Medical | Copper Alloy | Thermoplastic | Plastic | Plug Male Pins | Black | UL94 HB | Gold | Bayonet Lock | 0.2 " | 4.57 mm | 0.18 " | Keyed | Unshielded | IP67 - Dust Tight Waterproof | 600 VAC | Backshell | 7.5 A | Crimp | 85 °C | -40 C | Free Hanging (In-Line) | 5.08 mm |
