QCV Series

Catalog

SIGNAL CONDITIONING PWR SPLTR / SM / ROHS

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Specifications [Min]	Specifications [Max]	Insertion Loss	Frequency [Min]	Frequency [Max]
Mini-Circuits QCV-271+	3.2 mm	0.098 in	1.51 mm	0.059 in	0.126 "	2.5 mm	6-SMD No Lead	16 dB	8 °	0.9 dB	150 MHz	265 MHz

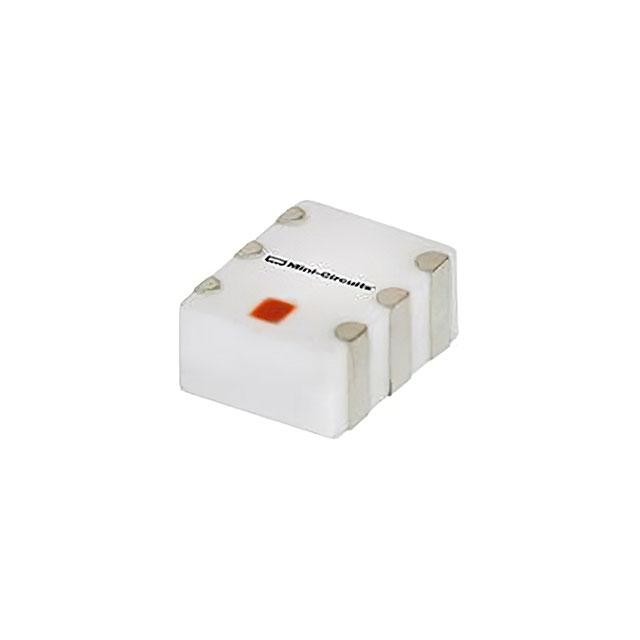

Mini-Circuits QCV-211+	3.2 mm	0.098 in	1.51 mm	0.059 in	0.126 "	2.5 mm	6-SMD No Lead	18 dB	1.6 VSWR 6 °	0.8 dB	130 MHz	210 MHz
